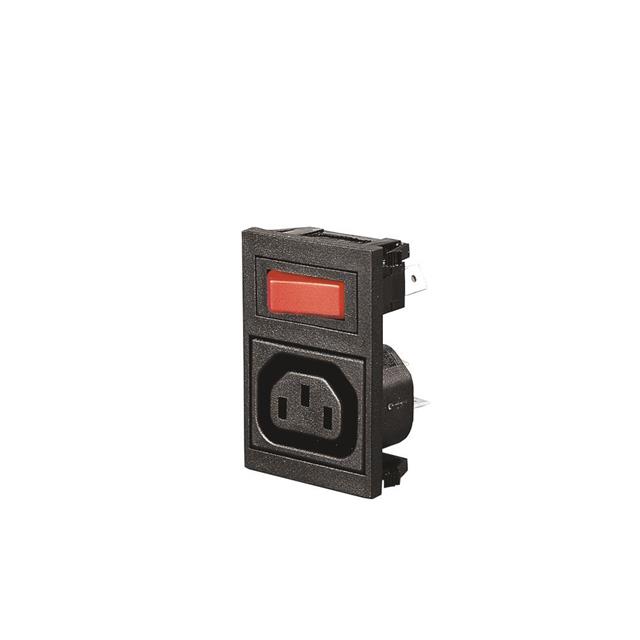

BZV45/Z0000/02

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-2-2F PL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-2-2F PL

Technical Specifications

Parameters and characteristics for this part

Specification	BZV45/Z0000/02

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	34.4 mm
Panel Cutout Dimensions [y]	56 mm
Panel Thickness [Max]	3 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	1 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Switch Features	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Connector Type	Accomodates a Fuse	Material Flammability Rating	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Connector Style	Mounting Type	Approval Agency
BULGIN LIMITED BZV45/Z0000/02	0.25 in	6.3 mm	Quick Connect	56 mm	34.4 mm	Unfiltered - Commercial	Switch On-Off	3 mm	0.118 in	0.039 in	1 mm	Receptacle Female Sockets - Module		UL94 V-0	250 VAC	10 A	IEC 320-2-2/F	Panel Mount Snap-In	CSA ENEC UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	120	$ 13.73
Newark	Each	1	$ 19.17

General part information

Power Entry Connector Receptacle, Female Sockets - Module IEC 320-2-2/F Panel Mount, Snap-In
