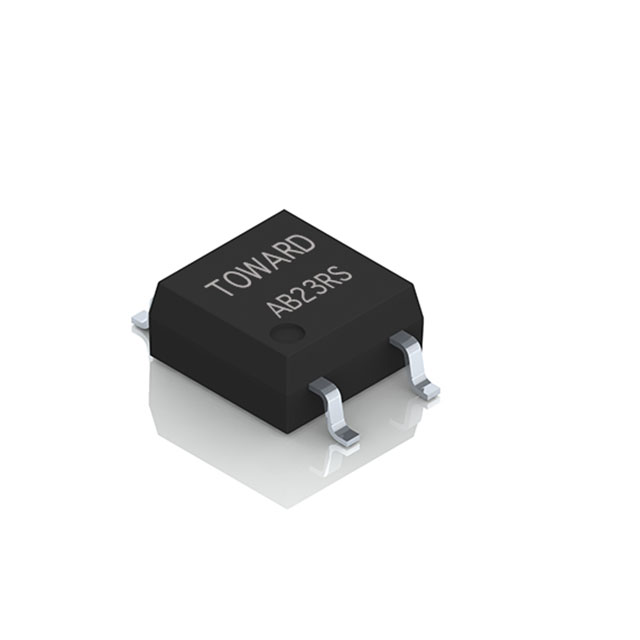

AB23RS-R1
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY SPST-NO 0-250V T&R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB23RS-R1
ActiveBright Toward Industrial Co., Ltd.
SSR RELAY SPST-NO 0-250V T&R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB23RS-R1 |
|---|---|
| Load Current | 170 mA |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 15 Ohm |
| Output Type | DC, AC |
| Package / Case | 4-SOP |
| Package / Case | 0.173 in |
| Package / Case | 4.4 mm |
| Supplier Device Package | 4-SOP |
| Termination Style | Gull Wing |
| Voltage - Input | 1.17 VDC |
| Voltage - Load [Max] | 250 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.13 | |
| 10 | $ 5.35 | |||
| 25 | $ 5.07 | |||
| 50 | $ 4.87 | |||
| 100 | $ 4.68 | |||
| 250 | $ 4.43 | |||
| 500 | $ 4.25 | |||
| Digi-Reel® | 1 | $ 6.13 | ||
| 10 | $ 5.35 | |||
| 25 | $ 5.07 | |||
| 50 | $ 4.87 | |||
| 100 | $ 4.68 | |||
| 250 | $ 4.43 | |||
| 500 | $ 4.25 | |||
| Tape & Reel (TR) | 1000 | $ 4.08 | ||
| 2000 | $ 3.92 | |||
Description
General part information
AB23R Series
Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
