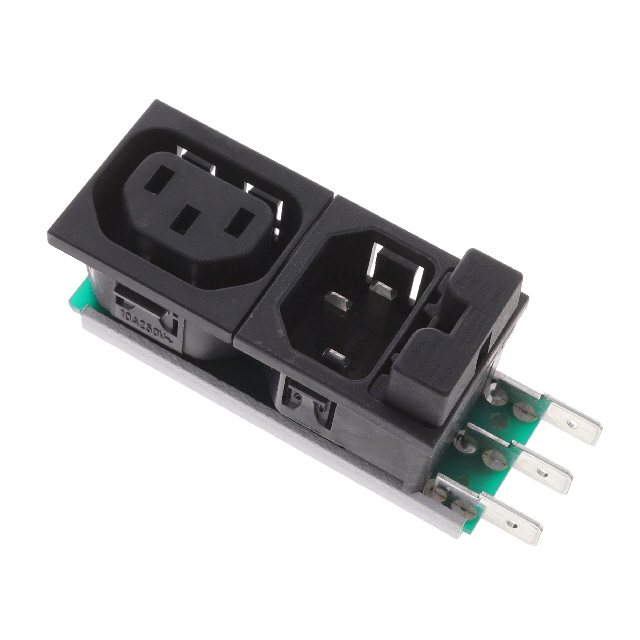

6423.0253.20

Active

SCHURTER Inc.

PWR ENT IN/OUT IEC320-2-2F PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT IN/OUT IEC320-2-2F PNL

Technical Specifications

Parameters and characteristics for this part

Specification	6423.0253.20

Accomodates a Fuse	True
Approval Agency	UL, ENEC, CSA
Connector Style	IEC 320-2-2/F, IEC 320-C14
Connector Type	Receptacle, Female Sockets, Receptacle, Male Blades
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Number of Positions	3
Panel Cutout Dimensions [x]	27.6 mm
Panel Cutout Dimensions [y]	65.5 mm
Panel Thickness	2 mm
Panel Thickness	0.079 in
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Approval Agency	Voltage Rating - Appliance Inlet	Mounting Type	Connector Style	Filter Type	Material Flammability Rating	Accomodates a Fuse	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Fuse Holder, Drawer	Number of Positions	Number of Positions	Panel Thickness	Panel Thickness	Current Rating - Appliance Inlet	Connector Type	Termination	Termination	Termination
SCHURTER Inc. 6423.0253.20	CSA ENEC UL	250 VAC	Panel Mount Snap-In	IEC 320-2-2/F IEC 320-C14	Unfiltered - Commercial	UL94 V-0		27.6 mm	65.5 mm	Fuse Holder	2	3	2 mm	0.079 in	10 A	Receptacle Female Sockets Receptacle Male Blades	0.25 in	6.3 mm	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets; Receptacle, Male Blades IEC 320-2-2/F; IEC 320-C14 Panel Mount, Snap-In
