YM0003AB
ActiveQuectel

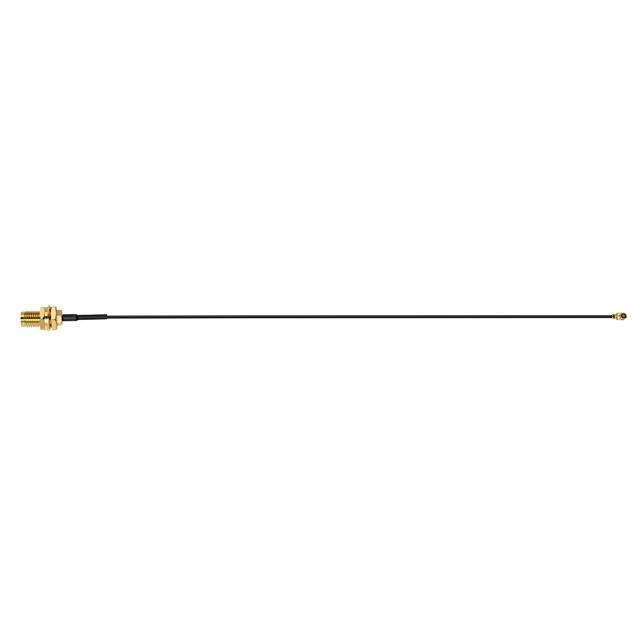

CABLE ASSLY,200MM,RPSMA F TOUFL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YM0003AB
ActiveQuectel
CABLE ASSLY,200MM,RPSMA F TOUFL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YM0003AB |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | I-PEX MHF1 Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 1.13mm OD Coaxial Cable |
| Frequency - Max [Max] | 6000 MHz |
| Length | 7.874 in |
| Length | 200 mm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Overall Impedance | 50 Ohms |
| Style | SMA to I-PEX MHF1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.47 | |
| 10 | $ 1.62 | |||
| 25 | $ 1.40 | |||
| 200 | $ 1.05 | |||
| 400 | $ 1.05 | |||
Description
General part information
YM0003 Series
Cable Assembly Coaxial SMA to I-PEX MHF1 1.13mm OD Coaxial Cable 7.874" (200.00mm)
