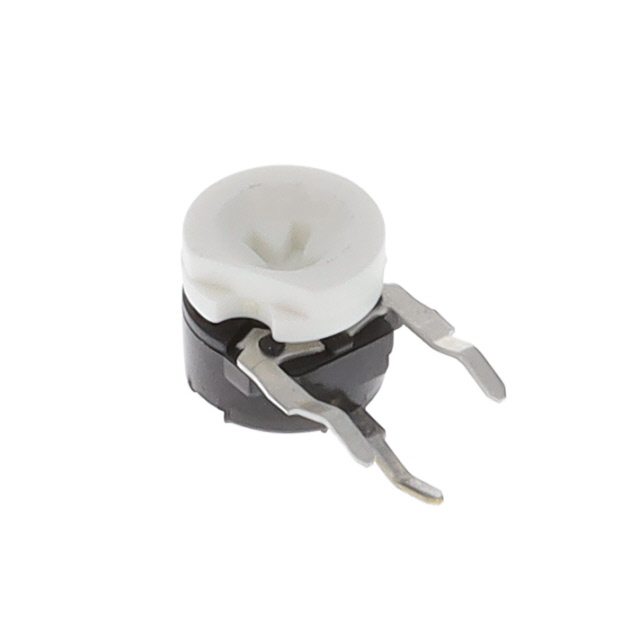

PT6WH-253A2020
ActiveAmphenol Piher Sensing Systems
TRIMMER 25K OHM 0.1W PC PIN SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT6WH-253A2020
ActiveAmphenol Piher Sensing Systems
TRIMMER 25K OHM 0.1W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PT6WH-253A2020 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.1 W |
| Power (Watts) | 0.1 W |
| Resistance | 25 kOhms |
| Resistive Material | Carbon |
| Size / Dimension [diameter] | 0.248 in |
| Size / Dimension [diameter] | 6.3 mm |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 0.88 | |||
| 25 | $ 0.80 | |||
| 50 | $ 0.75 | |||
| 100 | $ 0.71 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.56 | |||
Description
General part information
PT6WH Series
25 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
