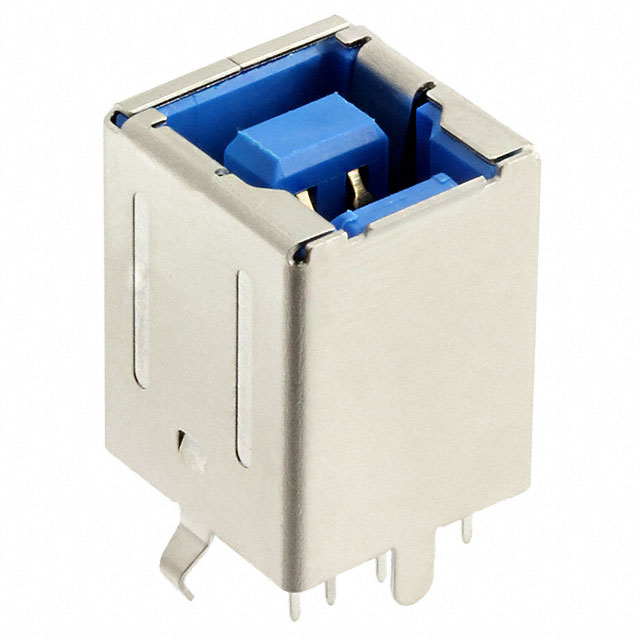

GSB422137EU
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB3.1 TYPEB 9POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GSB422137EU
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB3.1 TYPEB 9POS VERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GSB422137EU |
|---|---|
| Connector Type | USB-B |
| Contact Finish | Gold |
| Gender | Receptacle |
| Insulation Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 5000 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts | 9 |
| Number of Ports | 1 |
| Shell/Shielding Material | Brass |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.61 | |
| 10 | $ 1.99 | |||
| 25 | $ 1.79 | |||
| 40 | $ 1.70 | |||
| 50 | $ 1.16 | |||
| 80 | $ 1.57 | |||
| 100 | $ 1.11 | |||
| 230 | $ 1.40 | |||
| 250 | $ 1.04 | |||
| 440 | $ 1.31 | |||
| 500 | $ 0.99 | |||
| 945 | $ 1.21 | |||
| 2000 | $ 0.90 | |||
| 2400 | $ 1.10 | |||
| 4000 | $ 0.85 | |||
Description
General part information
GSB42 Series
USB-B (USB TYPE-B) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 9 Position Through Hole
