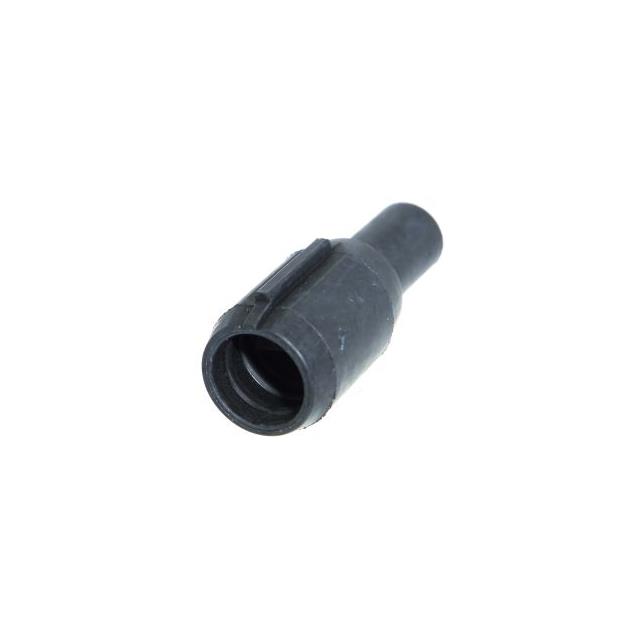

120-8551-100

Active

Sure-Seal

MSS-2R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

120-8551-100

Active

Sure-Seal

MSS-2R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	120-8551-100

Color	Black
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP67, IP65
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp

120-8 Series

Part	Type	Connector Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Shape	Housing Color	Note	Fastening Type	Contact Type	Primary Material	Orientation	Shielding	Shell Material	Color	Contact Material	Number of Positions	Termination	Insert Material	Mounting Feature
Sure-Seal 120-8551-005	For Male Pins	Receptacle Housing	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Free Hanging (In-Line)	Circular	Black	Contacts Not Included	Push-Pull	Crimp	Plastic	Keyed	Unshielded	Rubber
Sure-Seal 120-8551-102			IP65 IP67	-40 °C	105 ░C					Push-Pull		Plastic	Keyed	Unshielded		Black	Copper Alloy	4	Crimp
Sure-Seal 120-8552-006	For Female Sockets	Plug Housing	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Free Hanging (In-Line)	Circular	Black	Contacts Not Included	Push-Pull	Crimp	Plastic	Keyed	Unshielded	Rubber			6
Sure-Seal 120-8551-101			IP65 IP67	-40 °C	105 ░C					Push-Pull		Plastic	Keyed	Unshielded		Black	Copper Alloy		Crimp
Sure-Seal 120-8551-100			IP65 IP67	-40 °C	105 ░C					Push-Pull		Plastic	Keyed	Unshielded		Black	Copper Alloy	2	Crimp
Sure-Seal 120-8552-101			IP65 IP67	-40 °C	105 ░C	Free Hanging (In-Line)				Push-Pull		Plastic	Keyed	Unshielded		Black	Copper Alloy		Crimp
Sure-Seal 120-8552-201	For Female Sockets or Male Pins	Receptacle Housing	IP65 IP67	-40 °C	105 ░C		Circular	Black	Contacts Not Included	Push-Pull	Crimp	Plastic	Keyed	Unshielded	Santoprene™ 101-73					Santoprene™ 101-73	Flange
Sure-Seal 120-8552-102		Female Sockets Plug	IP65 IP67 IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Free Hanging (In-Line)				Push-Pull		Plastic	Keyed	Unshielded	Rubber	Black	Copper Alloy	4	Crimp
Sure-Seal 120-8552-100			IP65 IP67	-40 °C	105 ░C	Free Hanging (In-Line)				Push-Pull		Plastic	Keyed	Unshielded		Black	Copper Alloy	2	Crimp
Sure-Seal 120-8552-200	For Female Sockets or Male Pins	Receptacle Housing	IP65 IP67	-40 °C	105 ░C		Circular	Black	Contacts Not Included	Push-Pull	Crimp	Plastic	Keyed	Unshielded	Santoprene™ 101-73			2		Santoprene™ 101-73	Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.30
		10	$ 7.70
		25	$ 6.91
		50	$ 5.99
		100	$ 5.50

Description

General part information

120-8 Series

2 Position Circular Connector Crimp

Documents

Technical documentation and resources
