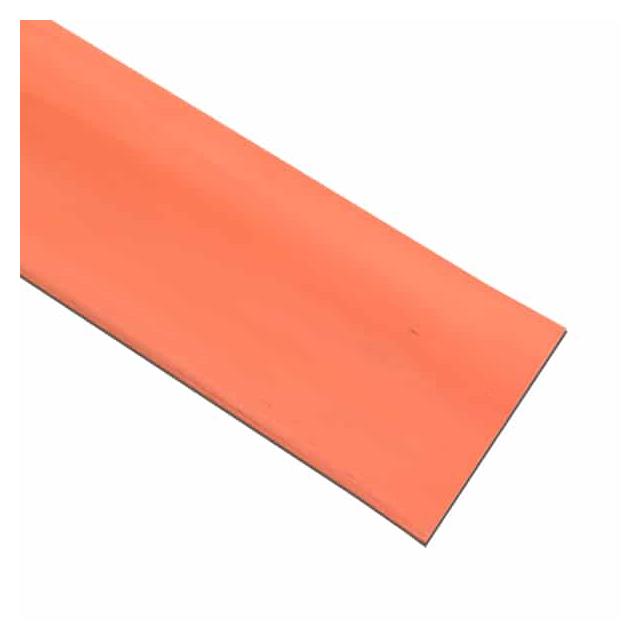

QBM-75/30-SS15M

Active

Qualtek

HEATSHRINK 75/30MM-15M

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 75/30MM-15M

Technical Specifications

Parameters and characteristics for this part

Specification	QBM-75/30-SS15M

Color	Orange-Red
Inner Diameter - Recovered [diameter]	30 mm
Inner Diameter - Recovered [diameter]	1.181 in
Inner Diameter - Supplied [diameter]	75.01 mm
Inner Diameter - Supplied [diameter]	2.953 in
Length [x]	49.2 ft
Length [x]	15 m
Material	Halogen Free, Polyolefin (PO)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.079 in
Recovered Wall Thickness	2.01 mm
Shelf Life	144 Months
Shrink Temperature	110 °C
Shrinkage Ratio [Max]	2.5
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Bus Bar

Part	Recovered Wall Thickness	Recovered Wall Thickness	Material	Shelf Life	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Shrinkage Ratio [Max]	Shrinkage Ratio [Min]	Length [x]	Length [x]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Color	Operating Temperature [Max]	Operating Temperature [Min]
Qualtek QBM-75/30-SS15M	0.079 in	2.01 mm	Halogen Free Polyolefin (PO)	144 Months	Bus Bar Tubing	75.01 mm	2.953 in	30 mm	1.181 in	110 °C	2.5	1	49.2 ft	15 m	-50 °F -10 °C	40 °C	Orange-Red	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Bus Bar 2.953" (75.01mm) 2.5 to 1 Orange-Red 49.2' (15.0m)
