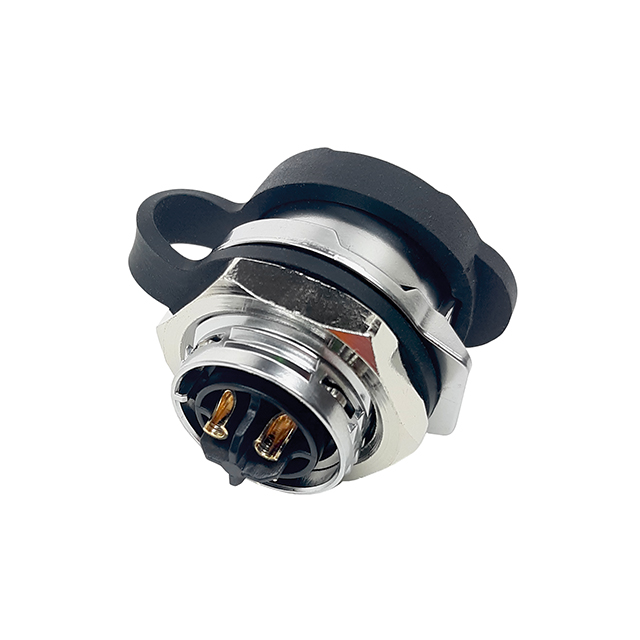

MRD-BG04-L13-000

Active

Amphenol ICC (Commercial Products)

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MRD-BG04-L13-000

Active

Amphenol ICC (Commercial Products)

CONN RCPT MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MRD-BG04-L13-000

Applications	Industrial
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Latch Lock
Features	Dust Cap
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Zinc Alloy
Shielding	Unshielded
Voltage Rating	500 VAC

MRD Series

Part	Applications	Ingress Protection	Shielding	Mounting Type	Backshell Material, Plating	Insert Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Features	Contact Finish - Mating	Orientation	Primary Material	Material Flammability Rating	Fastening Type	Shell Material	Contact Material	Voltage Rating	Color	Mounting Feature	Shell Finish	Number of Positions
Amphenol ICC (Commercial Products) MRD-AH03-M15-000	Industrial	IP67 - Dust Tight Waterproof	Unshielded	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	5 A	Flash	105 ░C	-55 °C	Receptacle Female Sockets	Backshell	Gold	Keyed	Plastic	UL94 V-0	Latch Lock	Polybutylene Terephthalate (PBT)	Copper Alloy	125 VAC	Black
Amphenol ICC (Commercial Products) MRD-BJ03-M16-000	Industrial	IP67 - Dust Tight Waterproof	Unshielded	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	10 A	Flash	105 ░C	-55 °C	Male Pins Receptacle	Backshell	Gold	Keyed	Plastic	UL94 V-0	Latch Lock	Polybutylene Terephthalate (PBT)	Copper Alloy	500 VAC	Black
Amphenol ICC (Commercial Products) MRD-BG04-L13-000	Industrial	IP67 - Dust Tight Waterproof	Unshielded			Polybutylene Terephthalate (PBT)	10 A	Flash	105 ░C	-55 °C	Male Pins Receptacle	Dust Cap	Gold	Keyed	Metal	UL94 V-0	Latch Lock	Zinc Alloy	Copper Alloy	500 VAC	Silver	Bulkhead - Rear Side Nut	Chrome	4
Amphenol ICC (Commercial Products) MRD-AP03-M15-000	Industrial	IP67 - Dust Tight Waterproof	Unshielded	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	5 A	Flash	105 ░C	-55 °C	Male Pins Plug	Backshell	Gold	Keyed	Plastic	UL94 V-0	Latch Lock	Polybutylene Terephthalate (PBT)	Copper Alloy	125 VAC	Black
Amphenol ICC (Commercial Products) MRD-BR03-M16-000	Industrial	IP67 - Dust Tight Waterproof	Unshielded	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	10 A	Flash	105 ░C	-55 °C	Female Sockets Plug	Backshell	Gold	Keyed	Plastic	UL94 V-0	Latch Lock	Polybutylene Terephthalate (PBT)	Copper Alloy	500 VAC	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.49
		10	$ 9.30
		25	$ 8.94
		60	$ 8.58
		120	$ 8.39

Description

General part information

MRD Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup
