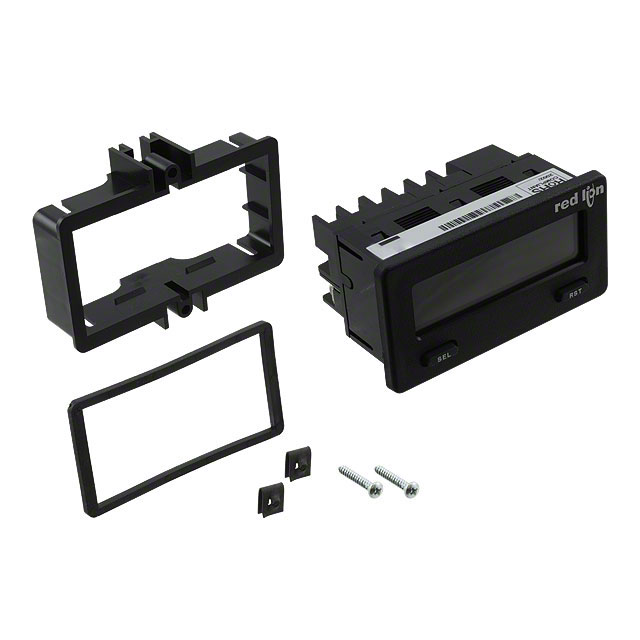

CUB5RTR0

Active

RED LION CONTROLS

TEMPERATURE DISPLAY FOR RTD, LCD

Search across all available documentation for this part.

Active

RED LION CONTROLS

TEMPERATURE DISPLAY FOR RTD, LCD

Technical Specifications

Parameters and characteristics for this part

Specification	CUB5RTR0

Display Characters - Height [z]	12.2 mm
Display Characters - Height [z]	0.48 in
Display Type	LCD - Black Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	850 °C
Measuring Range [Min]	-200 °C
Measuring Type	RTD
Number of Characters Per Row	5
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Output Type	1.81 mOhm
Panel Cutout Dimensions [x]	68 mm
Panel Cutout Dimensions [y]	33 mm
Termination Style	Screw Terminal
Type	Temperature Meter
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	9 V
Weight	100.24 g
Weight	0.221 lb

Part	Measuring Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Characters - Height [z]	Display Characters - Height [z]	Ingress Protection	Display Type	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Number of Characters Per Row	Measuring Range [Min]	Measuring Range [Max]	Type	Weight	Weight	Termination Style
RED LION CONTROLS CUB5RTR0	RTD	28 V	9 V	12.2 mm	0.48 in	IP65 - Dust Tight Water Resistant	LCD - Black Characters	1.81 mOhm	-35 °C	75 ░C	68 mm	33 mm	5	-200 °C	850 °C	Temperature Meter	100.24 g	0.221 lb	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Temperature Meter LCD - Black Characters Display Panel Mount
