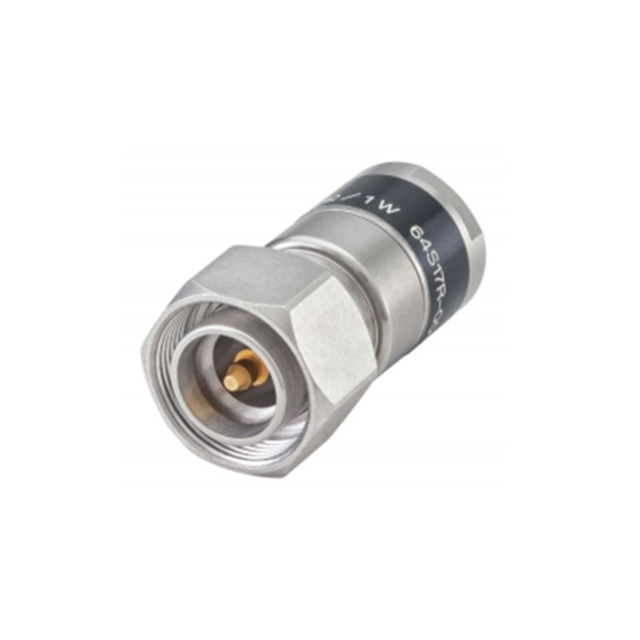

64S17R-001S3

Active

Rosenberger

4.3/10 TERMINATION

Search across all available documentation for this part.

Active

Rosenberger

4.3/10 TERMINATION

Technical Specifications

Parameters and characteristics for this part

Specification	64S17R-001S3

Body Finish	White Bronze
Body Material	Brass
Connector Style	4.3/10
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Connector Type	Frequency - Max [Max]	Body Material	Impedance	Body Finish	Connector Style	Dielectric Material	Contact Material	Mounting Type	Contact Finish
Rosenberger 64S17R-001S3	Male Pin Plug	6000 MHz	Brass	50 Ohms	White Bronze	4.3/10	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Cap Free Hanging	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	5	$ 534.99

General part information

Terminator Coax Connector Plug, Male Pin 4.3/10 50 Ohms
