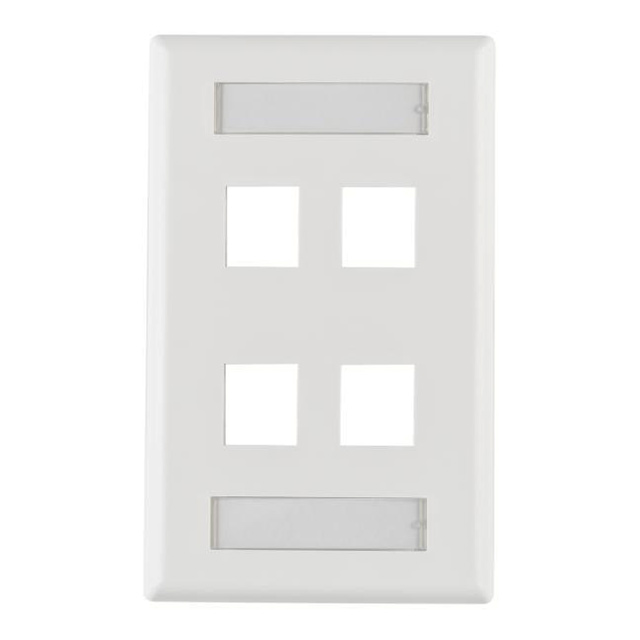

FPIQUAD-W

Active

HELLERMANNTYTON

FACEPLATE SNGL GANG 4PORT WHITE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

FACEPLATE SNGL GANG 4PORT WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	FPIQUAD-W

Color	White
Depth [z]	5.6 mm
Depth [z]	0.22 "
Features	Mounting Hardware, Label Cover/Holder with Labels
For Use With/Related Products	Modular Jacks
Length	4.5 in
Length	114.3 mm
Material	Acrylonitrile Butadiene Styrene (ABS)
Material Flammability Rating	UL94 V-0
Number of Ports	4
Port Direction	Straight
Style	Single Gang
Type	Faceplate
Width	69.85 mm
Width [y]	2.75 in

Part	Features	Color	Depth [z]	Depth [z]	Style	Length	Length	Port Direction	Type	Width [y]	Width	Number of Ports	Material	Material Flammability Rating	For Use With/Related Products
HELLERMANNTYTON FPIQUAD-SS	Label Holder	Silver	5.6 mm	0.22 "	Single Gang	4.5 in	114.3 mm	Straight	Faceplate	2.75 in	69.85 mm	4	Stainless Steel
HELLERMANNTYTON FPIQUAD-W	Label Cover/Holder with Labels Mounting Hardware	White	5.6 mm	0.22 "	Single Gang	4.5 in	114.3 mm	Straight	Faceplate	2.75 in	69.85 mm	4	Acrylonitrile Butadiene Styrene (ABS)	UL94 V-0	Modular Jacks
HELLERMANNTYTON FPIQUAD-FW	Label Cover/Holder with Labels Mounting Hardware	Off White	5.6 mm	0.22 "	Single Gang	4.5 in	114.3 mm	Straight	Faceplate	2.75 in	69.85 mm	4	Acrylonitrile Butadiene Styrene (ABS)	UL94 V-0	Modular Jacks
HELLERMANNTYTON FPIQUAD-I	Label Cover/Holder with Labels Mounting Hardware	Ivory	5.6 mm	0.22 "	Single Gang	4.5 in	114.3 mm	Straight	Faceplate	2.75 in	69.85 mm	4	Acrylonitrile Butadiene Styrene (ABS)	UL94 V-0	Modular Jacks

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.01

General part information

4 Port Faceplate White Single Gang
