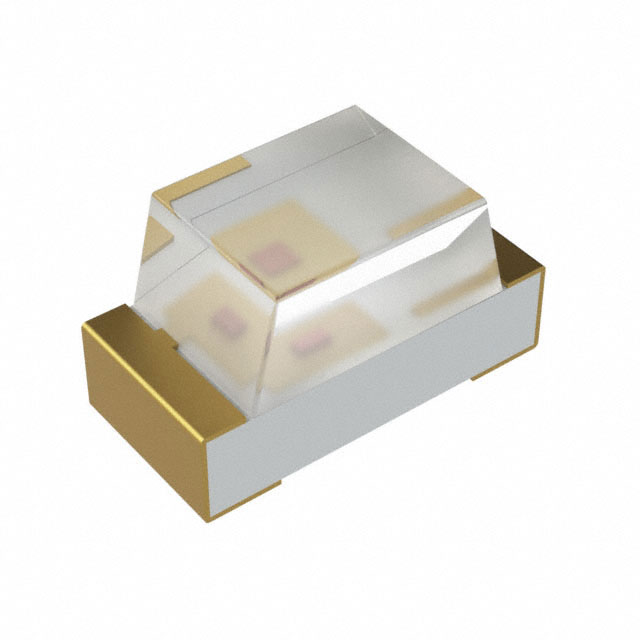

0.8MW/SR@20MA 140° 1.25V 940NM 0603 INFRARED LED EMITTERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IN-S63DTHIR

Active

Inolux

0.8MW/SR@20MA 140° 1.25V 940NM 0603 INFRARED LED EMITTERS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IN-S63DTHIR

Current - DC Forward (If) (Max)	65 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	0603 (1608 Metric)
Radiant Intensity (Ie) Min @ If [Min]	0.8 mW/sr
Type	Infrared (IR)
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	1.25 V
Wavelength	940 nm

IN-S63 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Mounting Type	Wavelength	Package / Case	Radiant Intensity (Ie) Min @ If [Min]	Orientation	Current - DC Forward (If) (Max)	Viewing Angle	Type	Lens Size [y]	Lens Size [x]	Lens Style	Wavelength - Dominant	Wavelength - Peak	Current - Test	Lens Color	Height (Max) [Max]	Configuration	Size / Dimension [x]	Size / Dimension [y]	Color	Lens Transparency	Millicandela Rating	Height (Max) [Max] [z]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]
Inolux IN-S63DTHIR	85 °C	-40 °C	1.25 V	Surface Mount	940 nm	0603 (1608 Metric)	0.8 mW/sr	Top View	65 mA	140 °	Infrared (IR)
Inolux IN-S63AS5Y			2 V	Surface Mount Right Angle		2-SMD No Lead				120 °		0.6 mm	1.2 mm	Rectangle with Flat Top	588 nm	590 nm	5 mA	Colorless	0.6 mm	Standard	1.7 mm	1.1 mm	Yellow	Clear	30 mcd
Inolux IN-S63AT5YG			2 V	Surface Mount		0603 (1608 Metric)				120 °		0.8 mm	1.15 mm	Rectangle with Flat Top	573 nm		5 mA	Colorless		Standard	1.6 mm	0.8 mm	Yellow-Green	Clear	11.5 mcd	0.4 mm
Inolux IN-S63BTA			2 V	Surface Mount		0603 (1608 Metric)				120 °		0.8 mm	1.2 mm	Rectangle with Flat Top	605 nm	609 nm	20 mA	Colorless	0.6 mm	Standard	1.6 mm	0.8 mm	Amber	Clear	140 mcd
Inolux IN-S63FTHIR	85 °C	-40 °C	1.25 V	Surface Mount	940 nm	0603 (1608 Metric)	0.8 mW/sr	Top View	65 mA	140 °	Infrared (IR)
Inolux IN-S63ASR			2.2 V	Surface Mount Right Angle		2-SMD No Lead				120 °		0.6 mm	1.2 mm	Rectangle with Flat Top	622 nm	630 nm	20 mA	Colorless	0.6 mm	Standard	1.7 mm	1.1 mm	Red	Clear	150 mcd
Inolux IN-S63DTPT	85 °C	-40 °C		Surface Mount	940 nm	0603 (1608 Metric)		Top View																			20 mA	150 mW	35 V	100 nA
