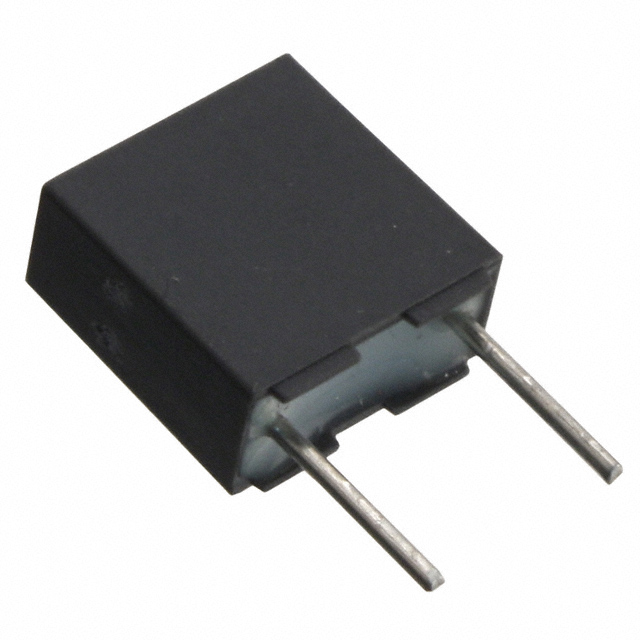

R79MC2100DQ40H

Active

KEMET

CAP FILM 10000PF 2.5% 400VDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 10000PF 2.5% 400VDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R79MC2100DQ40H

Applications	Switching, High Frequency
Capacitance	10000 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	0.299 in
Height - Seated (Max) [Max] [z]	7.6 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.283 in, 7.2 mm
Size / Dimension [y]	3.5 mm, 0.138 in
Termination	PC Pins
Tolerance	2.5 %
Voltage Rating - AC	200 V
Voltage Rating - DC	400 V

Part	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Mounting Type	Capacitance	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Voltage Rating - AC	Termination	Package / Case	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]
KEMET R79MC2100DQ40H	0.283 in 7.2 mm	0.138 in 3.5 mm	105 ░C	-55 °C	400 V	Through Hole	10000 pF	5 mm	0.197 in	2.5 %	0.299 in	7.6 mm	High Frequency Switching	200 V	PC Pins	Radial	Metallized Polypropylene (PP)
KEMET R79MC2470Z340J	7.2 mm	7.2 mm	105 ░C	-55 °C	400 V	Through Hole		5 mm	0.197 in	5 %	0.516 in	13.1 mm	High Frequency Switching	200 V	PC Pins	Radial	Metallized Polypropylene (PP)	0.283 "	0.283 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10000 pF Film Capacitor 200V 400V Polypropylene (PP), Metallized Radial
