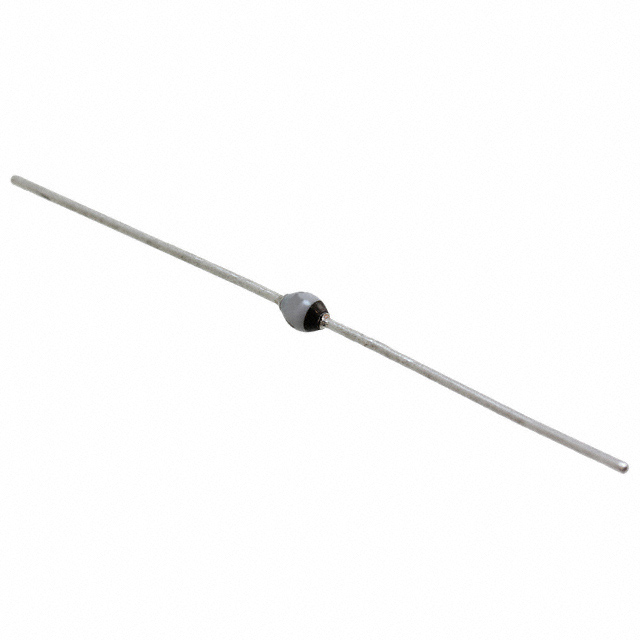

1N5060TR

Active

Vishay General Semiconductor - Diodes Division

DIODE AVALANCHE 400V 2A SOD57

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE AVALANCHE 400V 2A SOD57

Technical Specifications

Parameters and characteristics for this part

Specification	1N5060TR

Capacitance @ Vr, F	40 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	SOD-57, Axial
Reverse Recovery Time (trr)	4 µs
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	SOD-57
Technology	Avalanche
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.15 V

Part	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Current - Average Rectified (Io)	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Reverse Recovery Time (trr)	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Supplier Device Package
Vishay General Semiconductor - Diodes Division 1N5060TR	Avalanche	400 V	40 pF	2 A	Through Hole	175 ░C	-55 C	SOD-57	4 µs	Axial SOD-57	1 µA	1.15 V	Standard Recovery >500ns	200 mA
Vishay General Semiconductor - Diodes Division 1N5060TAP	Avalanche	400 V	40 pF	2 A	Through Hole	175 ░C	-55 C	SOD-57	4 µs	Axial SOD-57	1 µA	1.15 V	Standard Recovery >500ns	200 mA
Vishay General Semiconductor - Diodes Division 1N5060GPHE3/54	Standard	400 V	15 pF	1 A	Through Hole	175 ░C	-65 C	DO-204AC	2 µs	Axial DO-15 DO-204AC	5 µA	1.2 V	Standard Recovery >500ns	200 mA	DO-15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 400 V 2A Through Hole SOD-57
