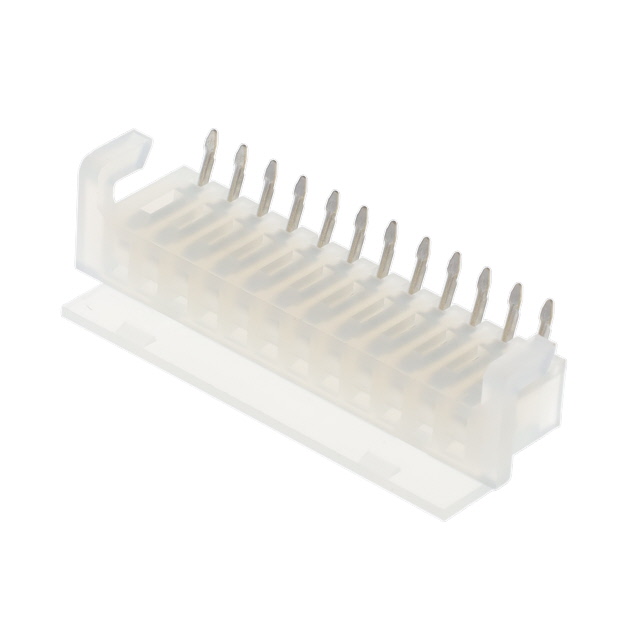

12P-SHVQ

Active

JST Sales America Inc.

CONN RECEPT 12POS SIDE ENTRY

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RECEPT 12POS SIDE ENTRY

Technical Specifications

Parameters and characteristics for this part

Specification	12P-SHVQ

Connector Type	Receptacle
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	4.8 mm
Insulation Height	0.189 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Termination	Solder
Voltage Rating	250 VDC

Part	Number of Rows	Insulation Color	Insulation Material	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Number of Positions	Insulation Height	Insulation Height	Material Flammability Rating	Termination	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Connector Type	Number of Positions Loaded	Voltage Rating	Current Rating (Amps)	Contact Shape
JST Sales America Inc. 12P-SHVQ	1	Natural	Polyamide (PA66) Nylon 6/6	2.5 mm	0.098 in	Friction Lock	Female Socket	12	4.8 mm	0.189 in	UL94 V-2	Solder	Brass	Board Edge Right Angle Through Hole	-25 °C	85 °C	0.118 in	3 mm	Receptacle	All	250 VDC	3 A	Square

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Receptacle Connector 0.098" (2.50mm) Board Edge, Through Hole, Right Angle Tin
