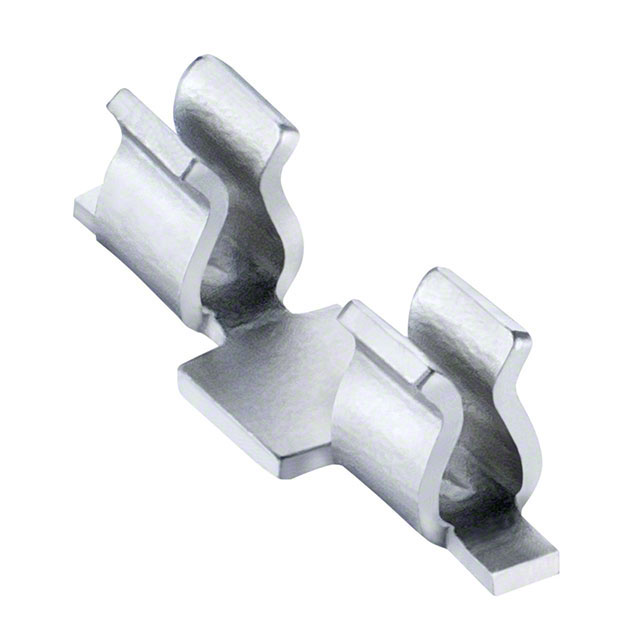

S0951-46R

Active

Harwin Inc.

RFI SHIELD CLIP, MICRO, STAINLESS STEEL, TIN, 0.2 MM SHIELD THICKNESS, SMT

Search across all available documentation for this part.

Active

Harwin Inc.

RFI SHIELD CLIP, MICRO, STAINLESS STEEL, TIN, 0.2 MM SHIELD THICKNESS, SMT

Technical Specifications

Parameters and characteristics for this part

Specification	S0951-46R

Attachment Method	Solder
Height [z]	1.28 mm
Height [z]	0.05 "
Length	0.154 "
Length	3.9 mm
Material	Stainless Steel
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Plating	Tin
Plating - Thickness [custom]	118.11 µin
Plating - Thickness [custom]	3 µm
Storage/Refrigeration Temperature [Max]	85 °C
Storage/Refrigeration Temperature [Max]	85 °C
Storage/Refrigeration Temperature [Min]	-4 °F
Storage/Refrigeration Temperature [Min]	-40 °C
Width [x]	1.1 mm
Width [x]	0.043 in

Part	Width [x]	Width [x]	Operating Temperature [Max]	Operating Temperature [Min]	Plating	Attachment Method	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Plating - Thickness [custom]	Plating - Thickness [custom]	Length	Length	Material	Height [z]	Height [z]
Harwin Inc. S0951-46R	1.1 mm	0.043 in	85 °C	-40 °C	Tin	Solder	-4 °F	-40 °C	85 °C	85 °C	118.11 µin	3 µm	0.154 "	3.9 mm	Stainless Steel	1.28 mm	0.05 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RFI SHIELD CLIP, MICRO, STAINLESS STEEL, TIN, 0.2 MM SHIELD THICKNESS, SMT
