M2478 SL005

Active

ALPHA WIRE

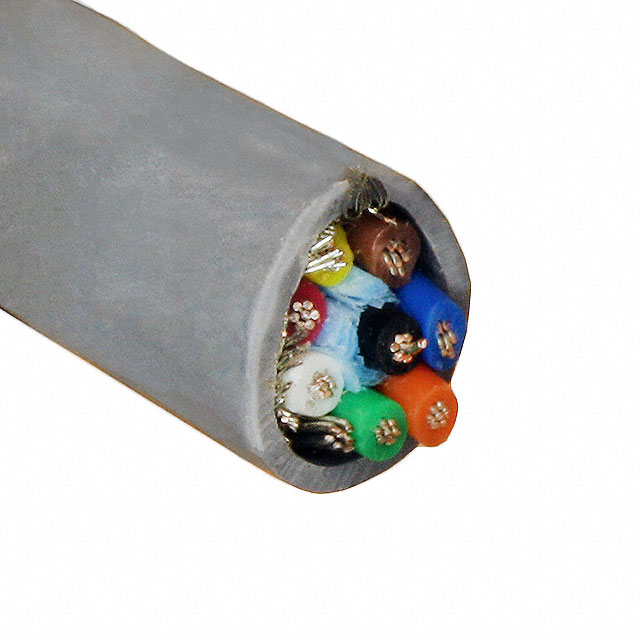

CABLE 8CON 22AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8CON 22AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M2478 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.256 in
Jacket (Insulation) Diameter [diameter]	6.5 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Number of Conductors	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Cable Type	Jacket Color	Shield Coverage	Conductor Insulation	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Material	Length	Length
ALPHA WIRE M2478 SL005	300 V	28	7	22 AWG	0.256 in	6.5 mm	UL Style 2464	8	Aluminum Copper Tinned	-20 C	80 C	Braid Foil	Multi-Conductor	Slate	65 % 100 %	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	Copper Tinned
ALPHA WIRE M2478 SL199	300 V	28	7	22 AWG	0.256 in	6.5 mm	UL Style 2464	8	Aluminum Copper Tinned	-20 C	80 C	Braid Foil	Multi-Conductor	Slate	65 % 100 %	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)			Copper Tinned	914.4 m	3000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Conductor Multi-Conductor Cable Slate 22 AWG Foil, Braid 100.0' (30.5m)
