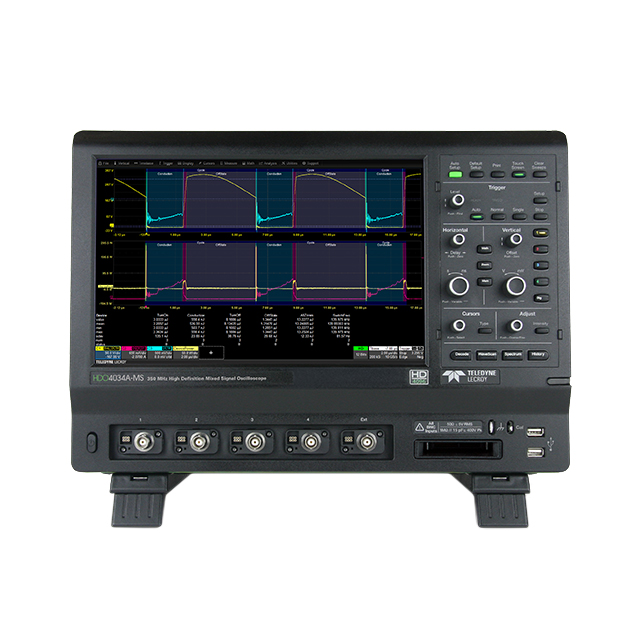

HDO4034A-MS
ActiveMSO / MDO OSCILLOSCOPE, W/MS, HDO4000A SERIES, 4 ANALOG, 16 DIGITAL, 350 MHZ, 10 GSPS, 12.5 MPTS
Deep-Dive with AI
Search across all available documentation for this part.
HDO4034A-MS
ActiveMSO / MDO OSCILLOSCOPE, W/MS, HDO4000A SERIES, 4 ANALOG, 16 DIGITAL, 350 MHZ, 10 GSPS, 12.5 MPTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDO4034A-MS |
|---|---|
| Bandwidth | 350 MHz |
| Channels [custom] | 16 |
| Channels [custom] | 4 |
| Display Type | LCD - Color (Touch) |
| Includes | Case, USB Adapter Cable |
| Input Impedance | 1 M, 12 pF |
| Interface | USB, Ethernet, GPIB |
| Memory Size | 12.5 Mpts |
| Probe Type | Passive 10:1 (4) |
| Rise Time (Typ) | 1 ns |
| Sampling Rate (Per Second) | 10 G |
| Type | Bench, Digital |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HDO4034 Series
HDO4034A-MS is a HDO4000A series mixed signal oscilloscope. The HDO4000A with HD4096 high definition technology provides exceptional signal fidelity with 12-bit resolution and a superior oscilloscope experience to deliver faster time to insight. It has a compact form factor with a large 12.1" WXVGA multi-touch display. Ideal for debug and troubleshooting of power electronics designs, digital power management or power integrity analysis, automotive electronics systems, and deeply embedded or mechatronic designs.
