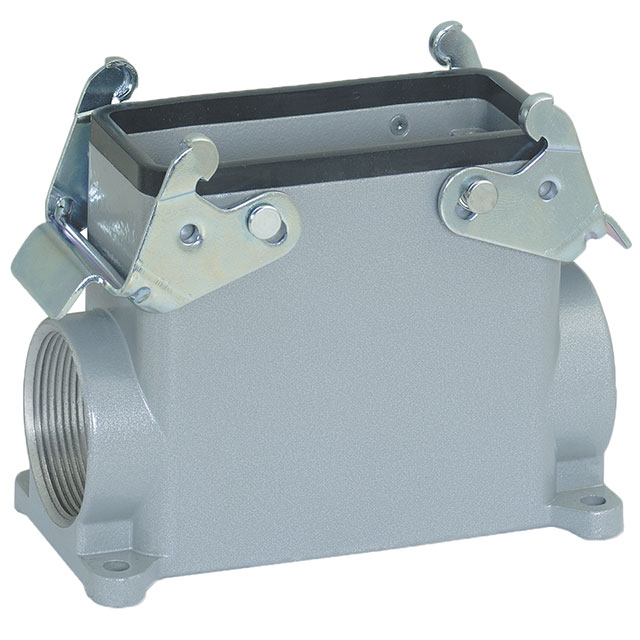

701354NP

Active

LAPP

CONN BASE HB24 SRFMNT NPT1 HIGH

Search across all available documentation for this part.

Active

LAPP

CONN BASE HB24 SRFMNT NPT1 HIGH

Technical Specifications

Parameters and characteristics for this part

Specification	701354NP

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB24
Size / Dimension [x]	5.669 "
Size / Dimension [x]	144 mm
Size / Dimension [y]	58 mm
Size / Dimension [y]	2.283 "
Size / Dimension [z]	3.307 "
Size / Dimension [z]	84 mm
Style	Side Entry
Thread Size	NPT-1

Part	Housing Finish	Housing Material	Style	Housing Color	Connector Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size	Ingress Protection	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location
LAPP 701354NP	Powder Coated	Aluminum Alloy	Side Entry	Gray	Base - Box Mount	58 mm	5.669 "	144 mm	3.307 "	84 mm	2.283 "	HB24	IP65 - Dust Tight Water Resistant	NPT-1	125 °C	-40 °C	Locking Clip (2) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry NPT-1 HB24 IP65 - Dust Tight, Water Resistant
