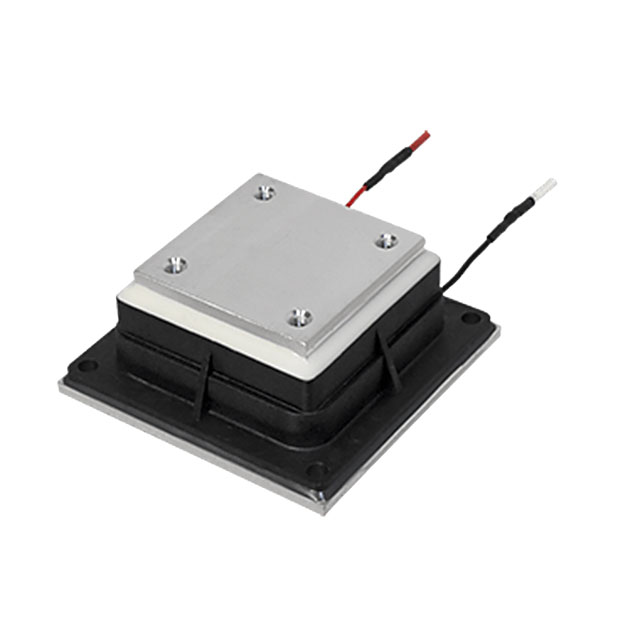

CPM-2C

Active

CUI Devices

PELTIER COOLING UNIT

Search across all available documentation for this part.

Active

CUI Devices

PELTIER COOLING UNIT

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Qmax @ Th	Voltage - Max [Max]	Features	Current - Max [Max]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Number of Stages	Resistance
CUI Devices CPM-2H	50 °C 70 °C	59 W	12 V	Lead Wires Sealed	8.5 A	26.5 mm	70 mm	70 mm	35 °C	1
CUI Devices CPM-2C	85.9 °C	43 W	12 V	Lead Wires Sealed	7 A	30 mm	70 mm	70 mm	35 °C	1
CUI Devices CPM-2F	50 °C 73 °C	46 W	12 V	Lead Wires Sealed - Epoxy	6 A	27 mm	70 mm	70 mm	35 °C	1	2.1 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 43.0W @ 50°C 7 A 35°C
