111RI,GY

Active

Serpac

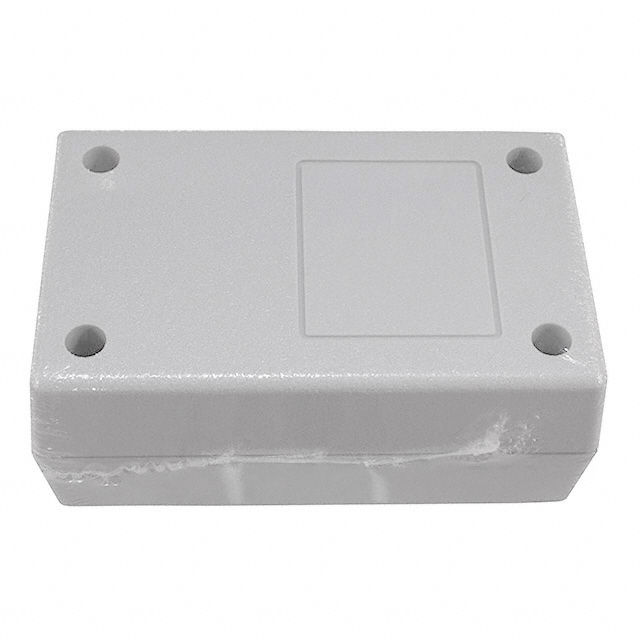

BOX ABS GRAY 3.6"L X 2.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 3.6"L X 2.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	111RI,GY

Area (L x W)	52.3 cm²
Area (L x W)	8.1 in²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	91.44 mm
Size / Dimension [x]	3.6 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	62.14 g
Weight	0.137 lb

Part	Height [z]	Height [z]	Weight	Weight	Design	Material Flammability Rating	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Material	Ratings	Features	Area (L x W) [custom]	Area (L x W) [custom]	Container Type	Area (L x W)	Area (L x W)
Serpac 111R,BK	38.1 mm	1.5 in	62.14 g	0.137 lb	Hand Held Split Sides	UL94 HB	2.54 mm	0.1 in	91.44 mm	57.15 mm	3.6 in	2.25 in	Black	Plastic ABS	IP40 NEMA 1	Front Access PCB Supports	52.3 cm˛	8.1 in˛	Box
Serpac 111R,AL	38.1 mm	1.5 in	62.14 g	0.137 lb	Hand Held Split Sides	UL94 HB	2.54 mm	0.1 in	91.44 mm	57.15 mm	3.6 in	2.25 in	Almond	Plastic ABS	IP40 NEMA 1	Front Access PCB Supports	52.3 cm˛	8.1 in˛	Box
Serpac 111RI,GY	38.1 mm	1.5 in	62.14 g	0.137 lb	Hand Held Split Sides	UL94 HB	2.54 mm	0.1 in	91.44 mm	57.15 mm	3.6 in	2.25 in	Gray	Plastic ABS	IP40 NEMA 1	Front Access PCB Supports			Box	52.3 cm²	8.1 in²
Serpac 111RI,AL	38.1 mm	1.5 in	62.14 g	0.137 lb	Hand Held Split Sides	UL94 HB	2.54 mm	0.1 in	91.44 mm	57.15 mm	3.6 in	2.25 in	Almond	Plastic ABS	IP40 NEMA 1	Front Access PCB Supports			Box	52.3 cm²	8.1 in²
Serpac 111R,GY	38.1 mm	1.5 in	62.14 g	0.137 lb	Hand Held Split Sides	UL94 HB	2.54 mm	0.1 in	91.44 mm	57.15 mm	3.6 in	2.25 in	Gray	Plastic ABS	IP40 NEMA 1	Front Access PCB Supports			Box	52.3 cm²	8.1 in²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.90

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 3.600" L x 2.250" W (91.44mm x 57.15mm) X 1.500" (38.10mm)
