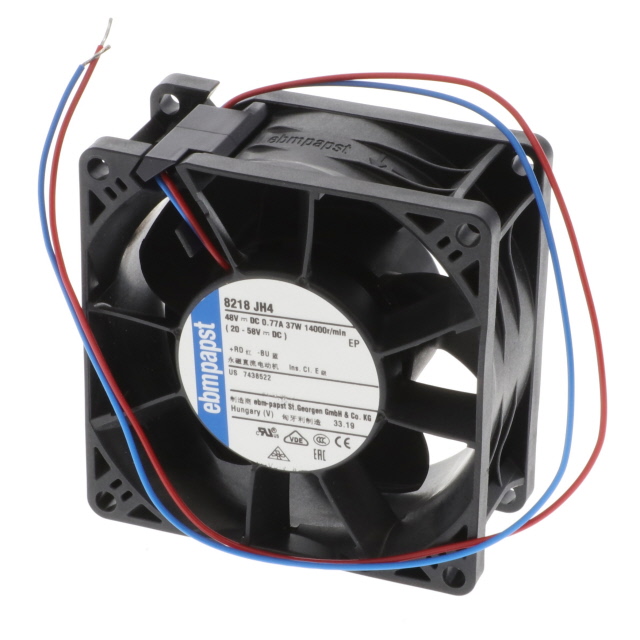

8218JH4

Active

ebm-papst Inc.

FAN AXIAL 80X38MM 48VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 80X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	8218JH4

Air Flow	131 CFM
Air Flow	3.67 mł/min
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	50000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	71 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	36 W
RPM	14000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	58 VDC
Voltage Range [Min]	20 VDC
Width [y]	38 mm

Part	Voltage - Rated [custom]	Noise	Fan Type	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [y]	Size / Dimension [x]	Bearing Type	Material - Blade	Lifetime @ Temp.	Air Flow	Air Flow	Power (Watts)	Termination	Features	Air Flow	Weight	Weight
ebm-papst Inc. 8218JH4	48 VDC	71 dB(A)	Tubeaxial	14000 RPM	-20 °C	70 °C	-20 C	70 °C	38 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 VDC	58 VDC	80 mm	80 mm	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	50000 Hrs	131 CFM	3.67 mł/min	36 W	2 Wire Leads
ebm-papst Inc. 8218J/2H3	48 VDC		Tubeaxial	12000 RPM	-20 °C	70 °C	-20 C	70 °C	38 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	36 VDC	53 VDC	80 mm	80 mm	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	55000 Hrs		112 CFM	25 W	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)	3.14 m³/min
ebm-papst Inc. 8218JH3	48 VDC		Tubeaxial	12000 RPM	-20 °C	70 °C	-20 C	70 °C	38 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	36 VDC	53 VDC	80 mm	80 mm	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	55000 Hrs		112 CFM	25 W	2 Wire Leads		3.14 m³/min
ebm-papst Inc. 8218JN	48 VDC	55 dB	Tubeaxial	8400 RPM	-20 °C	70 °C	-20 C	70 °C	38 mm		36 VDC	53 VDC	80 mm	80 mm	Ball	Nylon Polyamide (PA)	62500 Hrs	78 CFM	2.18 m³/min	11 W	2 Wire Leads			160.12 g	0.353 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 131.0 CFM (3.67m³/min) 2 Wire Leads
