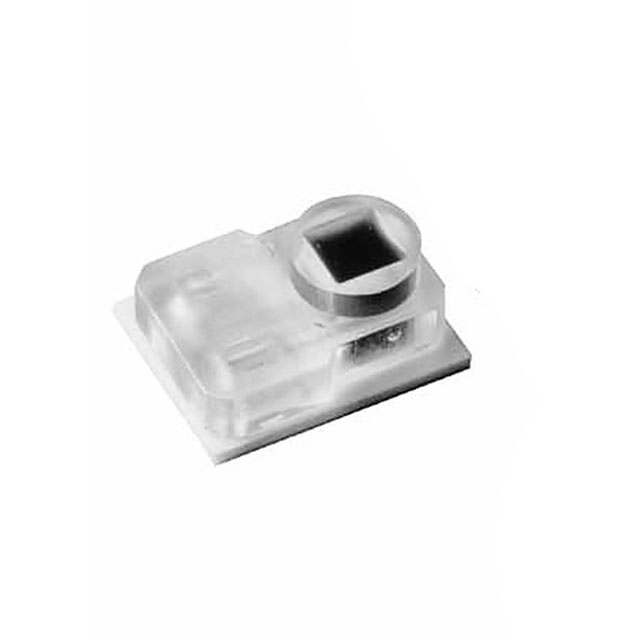

NPC-100T
ActiveAmphenol Advanced Sensors (NovaSensor)
SENSOR 5.8PSIG 0.19"
Deep-Dive with AI
Search across all available documentation for this part.
NPC-100T
ActiveAmphenol Advanced Sensors (NovaSensor)
SENSOR 5.8PSIG 0.19"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NPC-100T |
|---|---|
| Accuracy | 2 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 125 PSI |
| Maximum Pressure [Max] | 861.84 kPa |
| Operating Pressure [Max] | 5.8 PSI |
| Operating Pressure [Max] | 40 kPa |
| Operating Pressure [Min] | -1 PSI |
| Operating Pressure [Min] | -6.67 kPa |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 15 °C |
| Output Type | Wheatstone Bridge |
| Package / Case | Module |
| Port Size | Male |
| Port Size | 0.19 " |
| Port Size | 4.8 mm |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply [Max] | 10 V |
| Voltage - Supply [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.64 | |
| 5 | $ 6.90 | |||
| 10 | $ 6.62 | |||
| 25 | $ 6.29 | |||
| 50 | $ 6.06 | |||
| 100 | $ 5.85 | |||
| 500 | $ 5.44 | |||
| Digi-Reel® | 1 | $ 7.64 | ||
| 5 | $ 6.90 | |||
| 10 | $ 6.62 | |||
| 25 | $ 6.29 | |||
| 50 | $ 6.06 | |||
| 100 | $ 5.85 | |||
| 500 | $ 5.44 | |||
| Tape & Reel (TR) | 1200 | $ 5.24 | ||
Description
General part information
NPC Series
Pressure Sensor -0.97PSI ~ 5.8PSI (-6.67kPa ~ 40kPa) Vented Gauge Male - 0.19" (4.8mm) Tube Module
