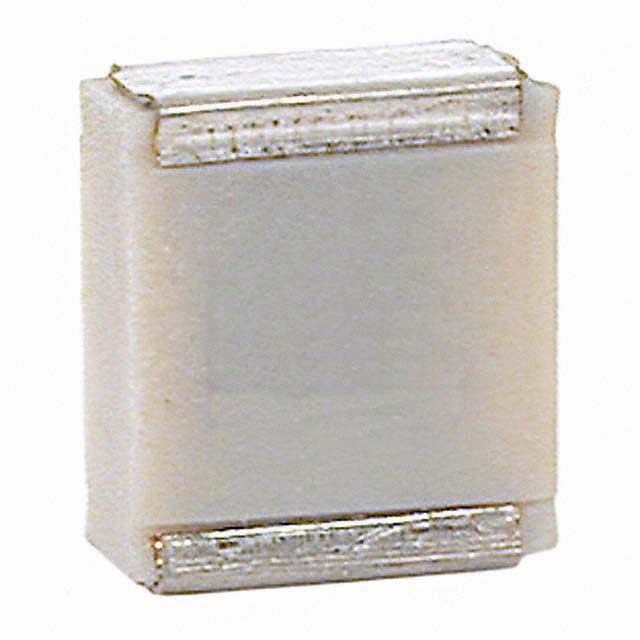

SMC7.3473J100K35TR12

Active

KEMET

CAP FILM 0.047UF 5% 100VDC 2824

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.047UF 5% 100VDC 2824

Technical Specifications

Parameters and characteristics for this part

Specification	SMC7.3473J100K35TR12

Applications	General Purpose
Dielectric Material	Polyphenylene Sulfide (PPS), Metallized
Features	High Temperature
Height - Seated (Max) [Max] [z]	3.5 mm
Height - Seated (Max) [Max] [z]	0.138 in
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2824
Size / Dimension [x]	7.3 mm
Size / Dimension [x]	0.287 in
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	Solder Pads
Tolerance	5 %
Voltage Rating - AC	63 V
Voltage Rating - DC	100 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Voltage Rating - AC	Applications	Dielectric Material	Features	Tolerance	Height - Seated (Max)	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Voltage Rating - DC	Capacitance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET SMC7.3104J50K33TR12	0.236 in	7.3 mm	0.287 in	6 mm	2824	30 V	General Purpose	Polyphenylene Sulfide (PPS) Metallized	High Temperature	5 %	3 mm	0.118 in	-55 °C	125 °C	Solder Pads	50 VDC	100000 pF	Surface Mount
KEMET SMC7.3473J100K35TR12	0.236 in	7.3 mm	0.287 in	6 mm	2824	63 V	General Purpose	Polyphenylene Sulfide (PPS) Metallized	High Temperature	5 %			-55 °C	125 °C	Solder Pads	100 V		Surface Mount	3.5 mm	0.138 in
KEMET SMC7.3154J50K35TR12	0.236 in	7.3 mm	0.287 in	6 mm	2824	30 V	General Purpose	Polyphenylene Sulfide (PPS) Metallized	High Temperature	5 %			-55 °C	125 °C	Solder Pads	50 VDC	0.15 ÁF	Surface Mount	3.5 mm	0.138 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.84
	Digi-Reel®	1	$ 3.84
	Tape & Reel (TR)	2300	$ 1.63

General part information

0.047 µF Film Capacitor 63V 100V Polyphenylene Sulfide (PPS), Metallized 2824 (7260 Metric)
