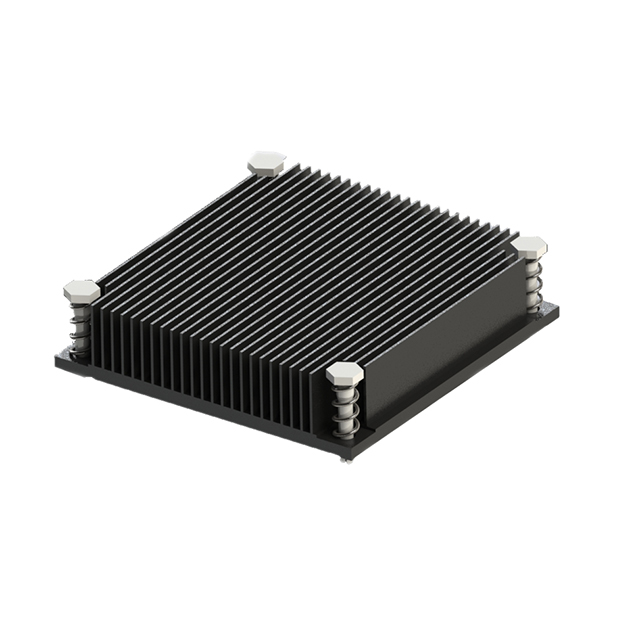

SKV909010-AL

Active

Wakefield-Vette

ALUMINUM HEATSINK 90X90X10MM

Search across all available documentation for this part.

Active

Wakefield-Vette

ALUMINUM HEATSINK 90X90X10MM

Technical Specifications

Parameters and characteristics for this part

Specification	SKV909010-AL

Attachment Method	Push Pin
Fin Height [z]	0.394 in
Fin Height [z]	10 mm
Length	90 mm
Length	3.543 in
Material	Aluminum
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	1.4 °C/W
Thermal Resistance @ Natural	5 °C/W
Type	Top Mount, Skived
Width [y]	3.543 "
Width [y]	90 mm

Part	Width [y]	Width [y]	Material	Fin Height [z]	Fin Height [z]	Type	Shape	Length	Length	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow	Attachment Method
Wakefield-Vette SKV909010-AL	3.543 "	90 mm	Aluminum	0.394 in	10 mm	Top Mount Skived	Fins Square	90 mm	3.543 in	5 °C/W	1.4 °C/W	Push Pin
Wakefield-Vette SKV909010-CU	3.543 "	90 mm	Copper	0.394 in	10 mm	Top Mount Skived	Fins Square	90 mm	3.543 in	4.5 °C/W	1.3 °C/W 200 LFM	Push Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.13

General part information

Heat Sink Aluminum Top Mount, Skived
