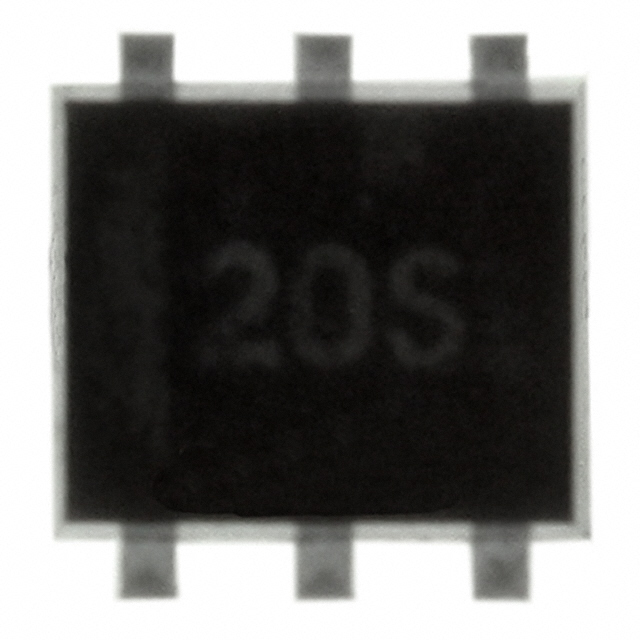

NJG1608KB2-TE1
ActiveNisshinbo Micro Devices Inc
RF SWITCH SPDT 100MHZ TO 6GHZ 16DB 6-PIN FLP-B2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJG1608KB2-TE1
ActiveNisshinbo Micro Devices Inc
RF SWITCH SPDT 100MHZ TO 6GHZ 16DB 6-PIN FLP-B2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJG1608KB2-TE1 |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 100 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.6 dB |
| Isolation | 18 dB |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 30 dBm |
| Package / Case | 6-SMD, Flat Leads |
| RF Type | General Purpose |
| Supplier Device Package | 6-FLP-B2 |
| Test Frequency | 5.85 GHz |
| Voltage - Supply [Max] | 6.5 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NJG1608 Series
RF Switch IC General Purpose SPDT 50Ohm 6-FLP-B2
Documents
Technical documentation and resources
