VG.ECI6360DK1.PP63.1.5

Active

ebm-papst Inc.

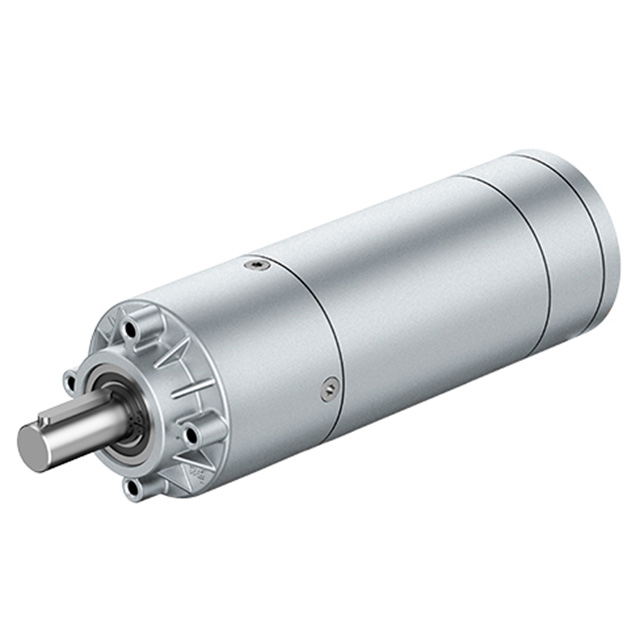

GEARMOTOR 800 RPM 48V PLANETARY

Search across all available documentation for this part.

Active

ebm-papst Inc.

GEARMOTOR 800 RPM 48V PLANETARY

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Hole Spacing	Mounting Hole Spacing	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Operating Temperature [Max]	Motor Type	Type	RPM	Length - Shaft and Bearing	Length - Shaft and Bearing	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Gear Reduction Ratio	Voltage - Rated	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination Style	Voltage - Rated [custom]
ebm-papst Inc. VG.ECI4240BK1.EC52.1.4	36 mm	1.417 in	902 mNm	127.8 oz-in	40 °C	Brushless (BLDC)	DC Motor	976 RPM	0.984 in	25 mm	0.315 in	8 mm	4.1	24 VDC
ebm-papst Inc. VG.ECI6340BK1.P63.1.5	52 mm	2.047 "	3350 mNm	474.5 oz-in	40 °C	Brushless (BLDC)	DC Motor	800 RPM			0.591 in	15 mm	5	24 VDC	39 mm	1.535 in	2.48 "	63 mm	Wire Leads
ebm-papst Inc. VG.ECI6360DK1.PP63.1.5	52 mm	2.047 "	4400 mNm	623.3 oz-in	40 °C	Brushless (BLDC)	DC Motor	800 RPM			0.591 in	15 mm	5		39 mm	1.535 in	2.48 "	63 mm	Wire Leads	48 VDC
ebm-papst Inc. VG.ECI6360DK1.PP63.2.30	52 mm	2.047 "	26400 mNm	3739 oz-in	40 °C	Brushless (BLDC)	DC Motor	133 RPM			0.591 in	15 mm	30		39 mm	1.535 in	2.48 "	63 mm	Wire Leads	48 VDC
ebm-papst Inc. VG.ECI6340BK1.EC75.1.4	52 mm	2.047 "	2747 mNm	389.1 oz-in	40 °C	Brushless (BLDC)	DC Motor	976 RPM			0.591 in	15 mm	4.1	24 VDC	30 mm	1.181 in	2.48 "	63 mm	Wire Leads
ebm-papst Inc. VG.ECI6340BK1.EC75.2.33	52 mm	2.047 "	22311 mNm	3160 oz-in	40 °C	Brushless (BLDC)	DC Motor	120 RPM			0.591 in	15 mm	33.3	24 VDC	30 mm	1.181 in	2.48 "	63 mm	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 528.31
