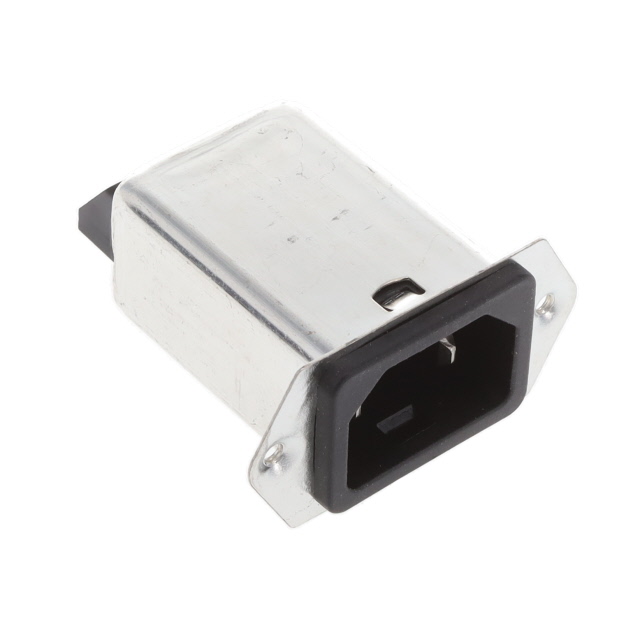

5120.1303.1

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C18 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C18 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	5120.1303.1

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C18
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	4 A
Current Rating - Filter	4 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Number of Positions	2
Panel Cutout Dimensions	Variable Size
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Appliance Inlet	Accomodates a Fuse	Termination	Termination	Termination	Filter Type	Approval Agency	Panel Cutout Dimensions	Voltage Rating - Appliance Inlet	Current Rating - Filter	Connector Style	Mounting Type	Material Flammability Rating	Ingress Protection	Connector Type	Features	Number of Positions
SCHURTER Inc. 5120.1303.0	4 A		0.25 in	6.3 mm	Quick Connect	Filtered (EMI RFI) - Commercial Medical	CCC cULus ENEC	Variable Size	250 VAC	4 A	IEC 320-C14	Flange Panel Mount	UL94 V-0	IP40	Male Blades Receptacle	Shielded
SCHURTER Inc. 5120.1303.1	4 A		0.25 in	6.3 mm	Quick Connect	Filtered (EMI RFI) - Commercial Medical	CCC cULus ENEC	Variable Size	250 VAC	4 A	IEC 320-C18	Flange Panel Mount	UL94 V-0	IP40	Male Blades Receptacle	Shielded	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.44

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C18 Panel Mount, Flange
