EM6819F4-A005-TP16B+

Active

EM Microelectronic

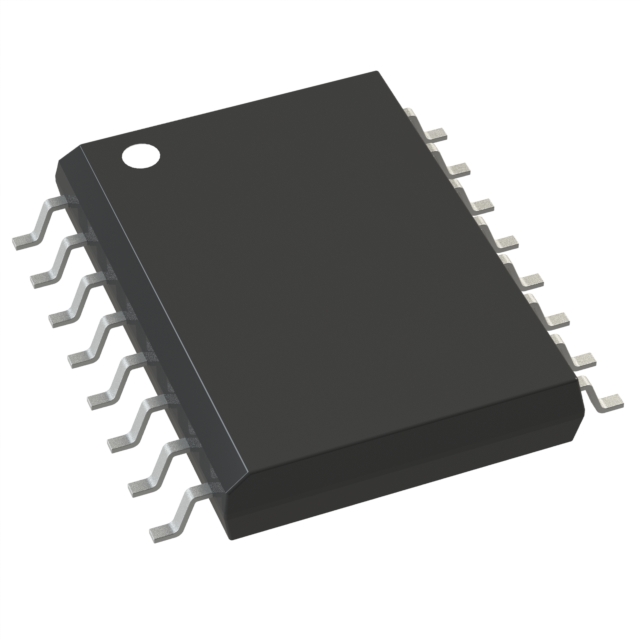

IC MCU 8BIT 11.5KB FLASH 16TSSOP

Search across all available documentation for this part.

Active

EM Microelectronic

IC MCU 8BIT 11.5KB FLASH 16TSSOP

Technical Specifications

Parameters and characteristics for this part

Specification	EM6819F4-A005-TP16B+

Connectivity	I2C, SPI, UART/USART
Core Processor	CR816L
Core Size	8-Bit
Data Converters [custom]	10
Data Converters [custom]	4
Mounting Type	Surface Mount
Number of I/O	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal
Package / Case	16-TSSOP
Package / Case [x]	0.173 in
Package / Case [y]	4.4 mm
Peripherals	WDT, Brown-out Detect/Reset, PWM, POR, Voltage Detect
Program Memory Size	11.5 KB
Program Memory Type	FLASH
RAM Size	256 x 8
Speed	15 MHz
Supplier Device Package	16-TSSOP
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	0.9 V

Part	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Applications	Package / Case [x]	Package / Case	Package / Case [y]	Mounting Type	Voltage - Output	Number of Outputs	Core Size	Number of I/O	Peripherals	Program Memory Type	Data Converters [custom]	Data Converters [custom]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Connectivity	Oscillator Type	Core Processor	RAM Size	Speed	Program Memory Size	RAM Size
EM Microelectronic EM6819F4-B005-TP016B+	3.6 V	0.9 V	85 °C	-40 °C	16-TSSOP	Converter Power Supplies	0.173 in	16-TSSOP	4.4 mm	Surface Mount	Multiple	8
EM Microelectronic EM6819F4-A005-TP16B+			85 °C	-40 °C	16-TSSOP		0.173 in	16-TSSOP	4.4 mm	Surface Mount			8-Bit	12	Brown-out Detect/Reset POR PWM Voltage Detect WDT	FLASH	10	4	3.6 V	0.9 V	I2C SPI UART/USART	External Internal	CR816L	256 x 8	15 MHz	11.5 KB
EM Microelectronic EM6819F4-B000-TP028B+			85 °C	-40 °C	20-QFN (4x4)			20-VFQFN Exposed Pad		Surface Mount			8-Bit	24	Brown-out Detect/Reset POR PWM Temp Sensor Voltage Detect WDT	FLASH	10	8	3.6 V	0.9 V	I2C SPI UART/USART	External Internal	CR816L		15 MHz	11.5 KB	512

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 1.40

General part information

CR816L - Microcontroller IC 8-Bit 15MHz 11.5KB (4K x 23) FLASH 16-TSSOP
