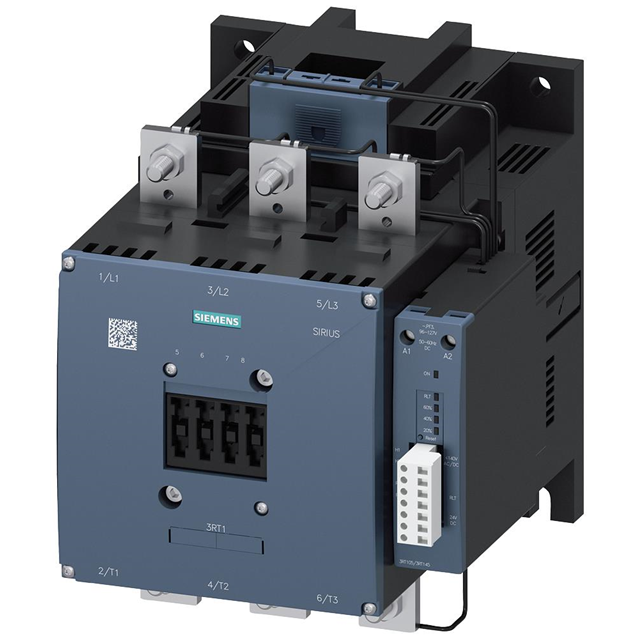

3RT14766PP35

Active

Siemens

CONTACTOR. 690A/AC-1

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSIRIUS Contactor Fail Safe Brochure SIRIUS Contactor Selection Guide.pdy +2

3RT14766PP35

Active

Siemens

CONTACTOR. 690A/AC-1

Deep-Dive with AI

DocumentsSIRIUS Contactor Fail Safe Brochure SIRIUS Contactor Selection Guide.pdy +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT14766PP35

Coil Power	800 W
Coil Voltage [Max]	277 VAC
Coil Voltage [Min]	200 VAC/DC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	690 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Operate Time	90 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	100 ms
Switching Voltage	1000 VAC
Termination Style	Screw Terminal

3RT1476 Series

Part	Features	Switching Voltage	Release Time	Mounting Type	Coil Power	Operate Time	Coil Voltage [Min]	Coil Voltage [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Contact Rating (Current)	Termination Style
Siemens 3RT14766AU36	Auxiliary Contacts	1000 VAC	100 ms	Chassis Mount DIN Rail	920 W	100 ms	240 VAC/DC	277 VAC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal
Siemens 3RT14766AS36	Auxiliary Contacts	1000 VAC	100 ms	Chassis Mount DIN Rail	920 W	100 ms	500 VAC/DC	550 VAC/DC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal
Siemens 3RT14766AV36	Auxiliary Contacts	1000 VAC	100 ms	Chassis Mount DIN Rail	920 W	100 ms	380 VAC/DC	420 VAC/DC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal
Siemens 3RT14766AF36	Auxiliary Contacts	1000 VAC	100 ms	Chassis Mount DIN Rail	920 W	100 ms	110 VAC/DC	127 VAC/DC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal
Siemens 3RT14766SF36	Auxiliary Contacts	1000 VAC	130 ms	Chassis Mount DIN Rail	800 W	75 ms	96 VAC/DC	127 VAC/DC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal
Siemens 3RT14766NB36	Auxiliary Contacts	1000 VAC	100 ms	Chassis Mount DIN Rail	800 W	90 ms	21 VAC/DC	27.3 VAC/DC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal
Siemens 3RT14766SP36	Auxiliary Contacts	1000 VAC	130 ms	Chassis Mount DIN Rail	800 W	75 ms	200 VAC/DC	277 VAC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal
Siemens 3RT14766AT36	Auxiliary Contacts	1000 VAC	100 ms	Chassis Mount DIN Rail	920 W	100 ms	575 VAC	600 VAC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal
Siemens 3RT14766NP36	Auxiliary Contacts	1000 VAC	100 ms	Chassis Mount DIN Rail	800 W	90 ms	200 VAC/DC	277 VAC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal
Siemens 3RT14766PP35	Auxiliary Contacts	1000 VAC	100 ms	Chassis Mount DIN Rail	800 W	90 ms	200 VAC/DC	277 VAC	-25 °C	60 °C	3PST-NO (3 Form A)	690 A	Screw Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4183.76
