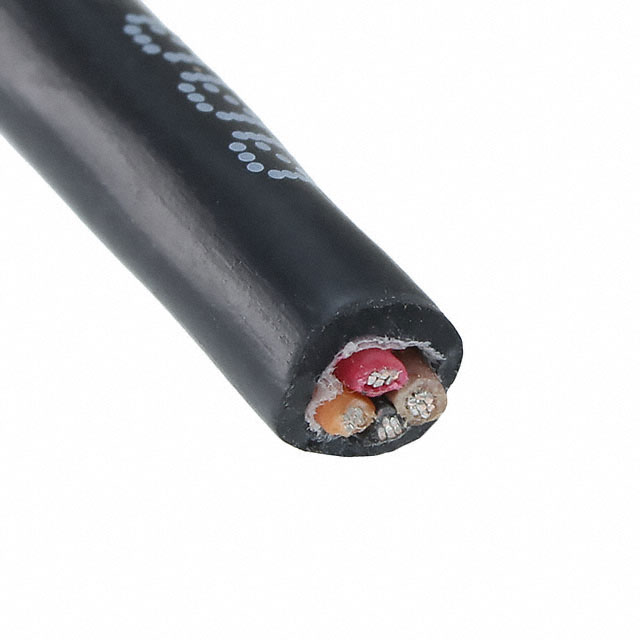

25014 BK005
ActiveALPHA WIRE
MULTICONDUCTOR CABLE, UNSHIELDED, 4 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
Deep-Dive with AI
Search across all available documentation for this part.
25014 BK005
ActiveALPHA WIRE
MULTICONDUCTOR CABLE, UNSHIELDED, 4 CONDUCTOR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 25014 BK005 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG |
| Conductor Strand [custom] | 7 |
| Features | Rip Cord, Biological Compatibility |
| Jacket (Insulation) Diameter [diameter] | 4.45 mm |
| Jacket (Insulation) Diameter [diameter] | 0.175 in |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Black |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -30 ░C |
| Ratings | UL Style 20668, ISO 10993 |
| Voltage | 300 V |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 264.44 | |
| 2 | $ 251.53 | |||
| 3 | $ 244.23 | |||
| 5 | $ 235.28 | |||
| 7 | $ 229.54 | |||
| 10 | $ 223.57 | |||
| 25 | $ 208.83 | |||
| 50 | $ 208.16 | |||
Description
General part information
25014 Series
4 Conductor Multi-Conductor Cable Black 24 AWG 100.0' (30.5m)
