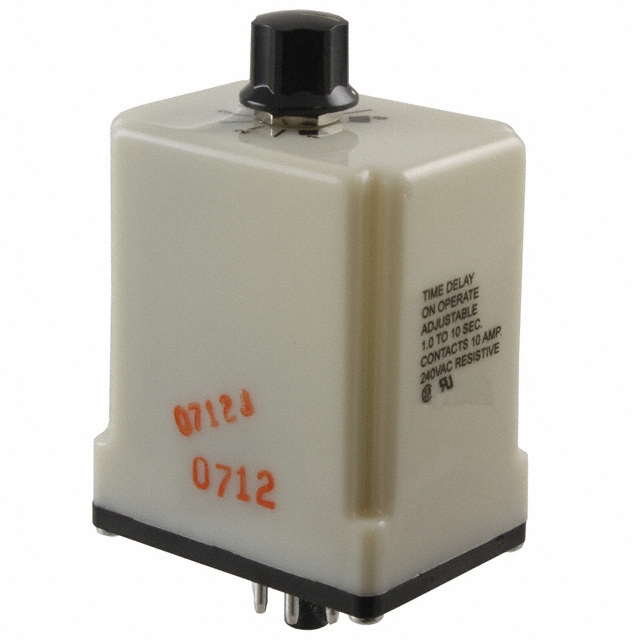

CHD-38-30003

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 180SEC 10A 277V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY TIME DELAY 180SEC 10A 277V

Technical Specifications

Parameters and characteristics for this part

Specification	CHD-38-30003

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage [custom]	277 VAC
Contact Rating @ Voltage [custom]	10 A
Delay Time [Max]	180 Sec
Delay Time [Min]	1 Sec
Function	On-Delay
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 8 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Input Voltage
Voltage - Supply	24 VDC

Part	Delay Time [Min]	Delay Time [Max]	Termination Style	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]	Circuit	Voltage - Supply	Relay Type	Mounting Type	Timing Initiate Method	Function	Timing Adjustment Method
TE Connectivity Potter & Brumfield Relays CHD-38-30003	1 Sec	180 Sec	Plug In 8 Pin (Octal)	277 VAC	10 A	DPDT (2 Form C)	24 VDC	Mechanical Relay	Socketable	Input Voltage	On-Delay	Hand Dial
TE Connectivity Potter & Brumfield Relays CHD-38-30011	1 Sec	10 s	Plug In 11 Pin (Octal)	277 VAC	10 A	DPDT (2 Form C)	24 VDC	Mechanical Relay	Socketable	Input Voltage Trigger Signal	Off-Delay	Hand Dial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

On-Delay Time Delay Relay DPDT (2 Form C) 1 Sec ~ 180 Sec Delay 10A @ 277VAC Socketable
