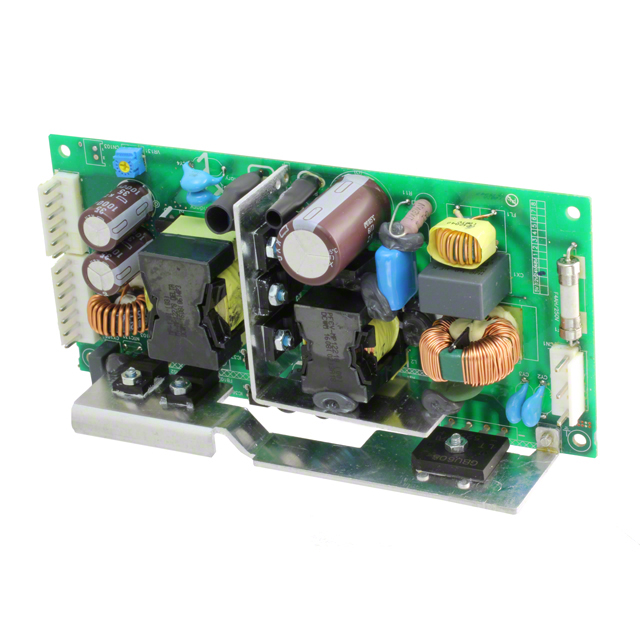

PJ-24V150WBNA

Active

Delta Electronics

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 150 W, 85V AC TO 264V AC, ADJUSTABLE, FIXED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet PJ-12/24V150Wx TUV Cert +2

PJ-24V150WBNA

Active

Delta Electronics

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 150 W, 85V AC TO 264V AC, ADJUSTABLE, FIXED

Deep-Dive with AI

DocumentsDatasheet PJ-12/24V150Wx TUV Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-24V150WBNA

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	6.3 A
Efficiency	91 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	150 W
Size / Dimension [x]	6.3 "
Size / Dimension [x]	160 mm
Size / Dimension [y]	2.95 in
Size / Dimension [y]	75 mm
Size / Dimension [z]	37 mm
Size / Dimension [z]	1.46 "
Type	Open Frame, Conformal Coated
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

PJ-24V150 Series

Part	Approval Agency	Voltage - Output 1	Efficiency	Number of Outputs	Mounting Type	Applications	Voltage - Isolation	Features	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Current - Output 1
Delta Electronics PJ-24V150WBNA	CB CE cURus TUV	24 V	91 %	1	Chassis Mount	ITE (Commercial)	3000 V	Adjustable Output PFC Universal Input	Conformal Coated Open Frame	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	-10 °C	70 °C	150 W	6.3 A
Delta Electronics PJ-24V150WCRA	CB CE cURus TUV	24 V	91 %	1	Chassis Mount	ITE (Commercial)	3000 V	Adjustable Output PFC Remote On/Off Universal Input	Enclosed	3.35 in	85 mm	47 mm	7.4 "	1.85 in	188 mm	-10 °C	70 °C	150 W	6.3 A
Delta Electronics PJ-24V150WBRA	CB CE cURus TUV	24 V	91 %	1	Chassis Mount	ITE (Commercial)	3000 V	Adjustable Output PFC Remote On/Off Universal Input	Open Frame	2.95 in	75 mm	37 mm	6.3 "	1.46 "	160 mm	-10 °C	70 °C	150 W	6.3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 57.63
		5	$ 55.88
		20	$ 54.13
		40	$ 50.64
		100	$ 48.90
Newark	Each	25	$ 58.79
		50	$ 53.95
		100	$ 50.84
		250	$ 49.11

Description

General part information

PJ-24V150 Series

PJ-24V150WBNA is a PJ series 150W AC to DC power supply comes with universal AC input at 85VAC to 264VAC. Other features include low leakage / Inrush current and conformal coating on the PCBAs to provide protection against dust and chemical pollutants. The built-in active PFC provides PF <gt/> 0.97 and fulfils Harmonic Current Emission according to IEC/EN/BS EN 61000-3-2. The PJ series is certified for EMC standards according to EN/BS EN 55011 for industrial, scientific and medical (ISM) radio-frequency equipment and EN/BS EN 55032 for Industrial Technology Equipment (ITE) radio-frequency equipment and EMS according to EN/BS EN 55024. In addition, the detachable input and output connectors are from JST and only recognized Japanese capacitors are used.
