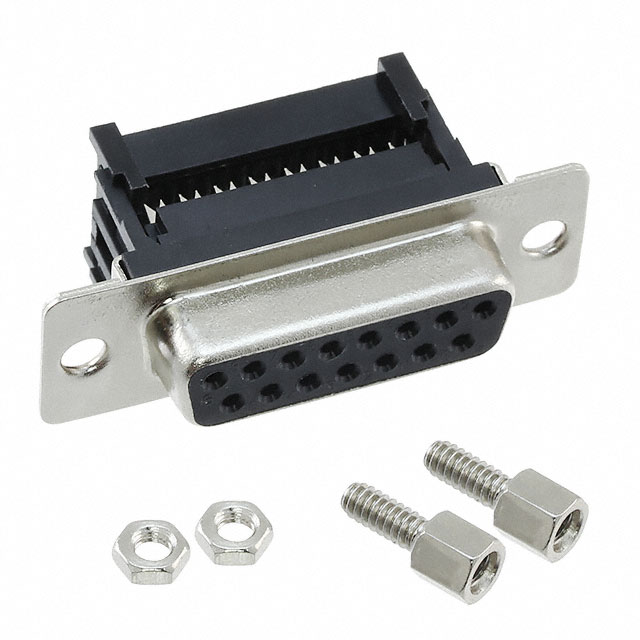

400F0-15-1-00

Active

CnC Tech, LLC

CONN D-SUB RCPT 15POS IDC

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN D-SUB RCPT 15POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	400F0-15-1-00

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Feed Through
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC

Part	Contact Finish	Shell Material, Finish	Mounting Type	Number of Rows	Contact Material	Shell Size, Connector Layout	Flange Feature	Connector Style	Features	Material Flammability Rating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Connector Type	Number of Positions	Contact Type	Voltage Rating
CnC Tech, LLC 400F0-15-1-00	Gold	Nickel Plated Steel	Free Hanging (In-Line)	2	Brass	2	Female Screwlock (4-40) Mating Side	D-Sub	Feed Through	UL94 V-0	IDC Ribbon Cable	-40 °C	105 ░C	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	15	Signal	250 VDC
CnC Tech, LLC 400F0-15-1-004S	Gold	Nickel Plated Steel	Free Hanging (In-Line)	2	Brass	2	Female Screwlock (4-40) Mating Side	D-Sub	Feed Through Strain Relief	UL94 V-0	IDC Ribbon Cable	-40 °C	105 ░C	Polybutylene Terephthalate (PBT) Glass Filled	Receptacle Female Sockets	15	Signal	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
