887-042-560-208
ActiveEDAC Inc.

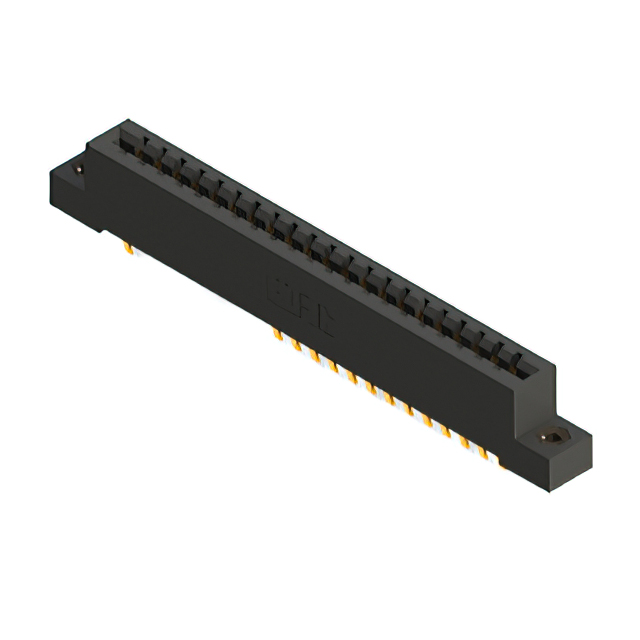

CONN EDGE DUAL FMALE 42POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-042-560-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 42POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-042-560-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 42 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
887-042 Series
...
| Part | Contact Finish | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Color | Contact Material | Read Out | Material - Insulation | Termination Rows | Termination | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Gender | Number of Rows | Mounting Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature | Flange Feature | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 42 | Black | Copper Alloy | Single | Polyphenylene Sulfide (PPS) | 1 | Solder | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 1 | Through Hole | 42 | 125 °C | -40 °C | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | Non Specified - Single Edge | |||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | Black | Copper Alloy | Dual | Polyphenylene Sulfide (PPS) | 2 | Wire Wrap | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 2 | Through Hole | 42 | 125 °C | -40 °C | Floating Bobbin Top Mount Opening | Non Specified - Dual Edge | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | Black | Copper Alloy | Dual | Polyphenylene Sulfide (PPS) | 2 | Solder | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 2 | Through Hole | 42 | 125 °C | -40 °C | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 3.96 mm | 0.156 in | ||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | Black | Copper Alloy | Dual | Polyphenylene Sulfide (PPS) | 2 | Solder | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 2 | Board Edge Straddle Mount | 42 | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Card Extender | |||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | Black | Copper Alloy | Dual | Polyphenylene Sulfide (PPS) | 2 | Wire Wrap | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 2 | Through Hole | 42 | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | ||||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | Black | Copper Alloy | Dual | Polyphenylene Sulfide (PPS) | 2 | Wire Wrap | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 2 | Through Hole | 42 | 125 °C | -40 °C | Floating Bobbin Top Mount Opening | Non Specified - Dual Edge | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | Black | Copper Alloy | Dual | Polyphenylene Sulfide (PPS) | 2 | Solder | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 2 | Through Hole Right Angle | 42 | 125 °C | -40 °C | Floating Bobbin Top Mount Opening | Non Specified - Dual Edge | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | Black | Copper Alloy | Dual | Polyphenylene Sulfide (PPS) | 2 | Solder | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 2 | Through Hole | 42 | 125 °C | -40 °C | Floating Bobbin Flush Mount | Non Specified - Dual Edge | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | Black | Copper Alloy | Dual | Polyphenylene Sulfide (PPS) | 2 | Wire Wrap | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 2 | Through Hole | 42 | 125 °C | -40 °C | Floating Bobbin Top Mount Opening | Non Specified - Dual Edge | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Gold | 0.156 in | 3.96 mm | 42 | Black | Copper Alloy | Single | Polyphenylene Sulfide (PPS) | 1 | Solder | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Female | 1 | Through Hole | 42 | 125 °C | -40 °C | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 92.49 | |
Description
General part information
887-042 Series
42 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
