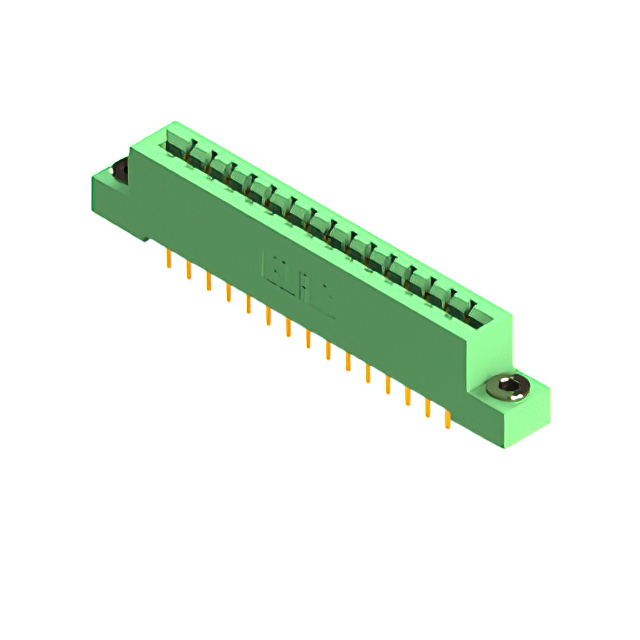

837-030-542-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 30POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
837-030-542-203
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 30POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 837-030-542-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
837-030 Series
...
| Part | Number of Rows | Termination | Termination Rows | Number of Positions/Bay/Row [custom] | Card Type | Contact Material | Pitch [x] | Pitch [x] | Read Out | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Contact Finish | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Solder | 1 | 30 | Non Specified - Single Edge | Copper Alloy | 0.156 in | 3.96 mm | Single | Through Hole Right Angle | 125 °C | -40 °C | Green | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | Solder | 2 | 15 | Non Specified - Dual Edge | Copper Alloy | 0.156 in | 3.96 mm | Dual | Through Hole | 125 °C | -40 °C | Green | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 2 | Solder | 2 | 15 | Non Specified - Dual Edge | Copper Alloy | 0.156 in | 3.96 mm | Dual | Board Edge Straddle Mount | 125 °C | -40 °C | Green | Side Mount Opening Unthreaded | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | 2 | Wire Wrap | 2 | 15 | Non Specified - Dual Edge | Copper Alloy | 0.156 in | 3.96 mm | Dual | Through Hole | 125 °C | -40 °C | Green | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 1 | Wire Wrap | 1 | 30 | Non Specified - Single Edge | Copper Alloy | 0.156 in | 3.96 mm | Single | Through Hole | 125 °C | -40 °C | Green | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 1 | Wire Wrap | 1 | 30 | Non Specified - Single Edge | Copper Alloy | 0.156 in | 3.96 mm | Single | Through Hole | 125 °C | -40 °C | Green | Side Mount Opening Unthreaded | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1 | Solder | 1 | 30 | Non Specified - Single Edge | Copper Alloy | 0.156 in | 3.96 mm | Single | Through Hole Right Angle | 125 °C | -40 °C | Green | Side Mount Opening Unthreaded | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2 | Solder | 2 | 15 | Non Specified - Dual Edge | Copper Alloy | 0.156 in | 3.96 mm | Dual | Through Hole | 125 °C | -40 °C | Green | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 1 | Solder | 1 | 30 | Non Specified - Single Edge | Copper Alloy | 0.156 in | 3.96 mm | Single | Through Hole | 125 °C | -40 °C | Green | M3 Threaded Insert Top Mount Opening | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 1 | Solder | 1 | 30 | Non Specified - Single Edge | Copper Alloy | 0.156 in | 3.96 mm | Single | Through Hole | 125 °C | -40 °C | Green | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Female | 30 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Gold | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
837-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
