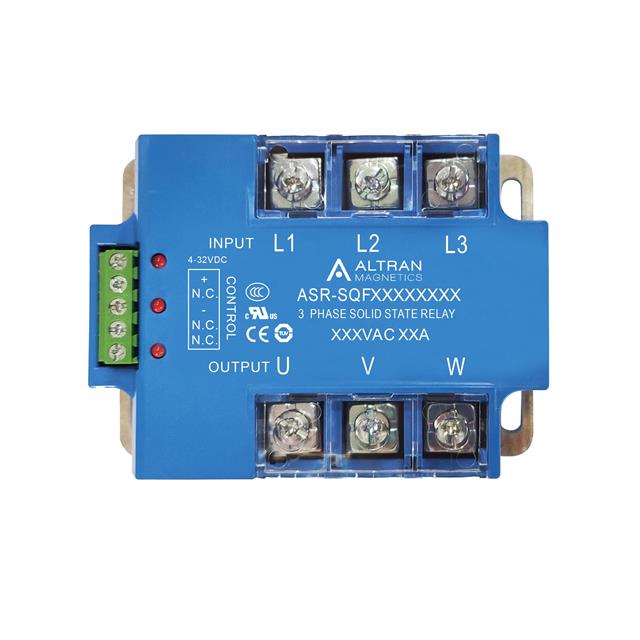

ASR-SQF480D25RW
ActiveAltran Magnetics, LLC
SSR RELAY 3PST-NO 25A 24-530V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ASR-SQF480D25RW
ActiveAltran Magnetics, LLC
SSR RELAY 3PST-NO 25A 24-530V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ASR-SQF480D25RW |
|---|---|
| Approval Agency | cURus, CE, CCC, TUV |
| Circuit | 3PST-NO (3 Form A) |
| Load Current | 25 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 530 V |
| Voltage - Load [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 111.55 | |
| 10 | $ 105.36 | |||
| 25 | $ 99.16 | |||
| 50 | $ 92.96 | |||
| 100 | $ 86.76 | |||
Description
General part information
ASR-SQF Series
Solid State 3PST-NO (3 Form A) Module
Documents
Technical documentation and resources
