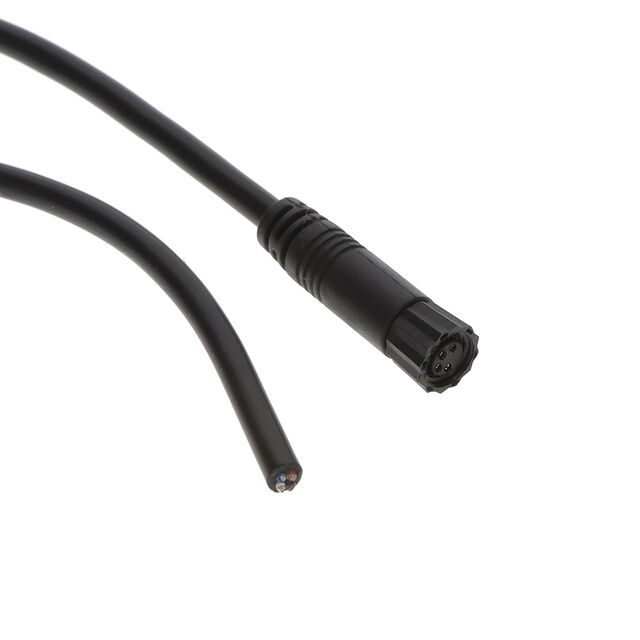

8P-04AFFM-SL7A01

Active

Amphenol LTW

CBL CIRC 4POS FEM TO WIRE 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8P-04AFFM-SL7A01

Active

Amphenol LTW

CBL CIRC 4POS FEM TO WIRE 3.28'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8P-04AFFM-SL7A01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

8P-04AFFM Series

Part	1st Connector Gender	Assembly Configuration	Cable Material	Usage	1st Connector Mounting Type	Ingress Protection	2nd Connector Type	Cable Type	Color	1st Connector Number of Positions	1st Connector Shell Size - Insert	Shielding	1st Connector Type	1st Connector Number of Positions Loaded	Length [x]	Length [x]	1st Connector Orientation [custom]
Amphenol LTW 8P-04AFFM-SR7A10	Female Sockets	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Wire Leads	Round	Black	4	M8	Unshielded	Receptacle Right Angle	All
Amphenol LTW 8P-04AFFM-SR7B02	Female Sockets	Standard	Polyurethane (PUR)	Industrial Environments	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Wire Leads	Round	Black	4	M8	Unshielded	Receptacle Right Angle	All	2 m	6.56 ft
Amphenol LTW 8P-04AFFM-QL5A01	Female Sockets	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	Free Hanging (In-Line)	IP65 - Dust Tight Water Resistant	Wire Leads	Round	Black	4	M8	Unshielded	Plug	All	1 m	3.28 ft	Keyed
Amphenol LTW 8P-04AFFM-SR7B10	Female Sockets	Standard	Polyurethane (PUR)	Industrial Environments	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Wire Leads	Round	Black	4	M8	Unshielded	Receptacle Right Angle	All
Amphenol LTW 8P-04AFFM-SL7B05	Female Sockets	Standard	Polyurethane (PUR)	Industrial Environments	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Wire Leads	Round	Black	4	M8	Unshielded	Receptacle	All
Amphenol LTW 8P-04AFFM-SL7A01	Female Sockets	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Wire Leads	Round	Black	4	M8	Unshielded	Receptacle	All	1 m	3.28 ft
Amphenol LTW 8P-04AFFM-SR7B01	Female Sockets	Standard	Polyurethane (PUR)	Industrial Environments	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Wire Leads	Round	Black	4	M8	Unshielded	Receptacle Right Angle	All	1 m	3.28 ft
Amphenol LTW 8P-04AFFM-QL5A05	Female Sockets	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	Free Hanging (In-Line)	IP65 - Dust Tight Water Resistant	Wire Leads	Round	Black	4	M8	Unshielded	Plug	All	500 mm	1.64 ft	Keyed
Amphenol LTW 8P-04AFFM-SL7A02	Female Sockets	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Wire Leads	Round	Black	4	M8	Unshielded	Receptacle	All	2 m	6.56 ft
Amphenol LTW 8P-04AFFM-SL7A05	Female Sockets	Standard	Polyvinyl Chloride (PVC)	Industrial Environments	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Wire Leads	Round	Black	4	M8	Unshielded	Receptacle	All	500 mm	1.64 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.91
		10	$ 8.37
		25	$ 7.56
		50	$ 7.02
		100	$ 6.52
		250	$ 5.93
		500	$ 5.54
		1000	$ 5.18

Description

General part information

8P-04AFFM Series

Circular Cable Assembly Unshielded 3.28' (1.00m)
