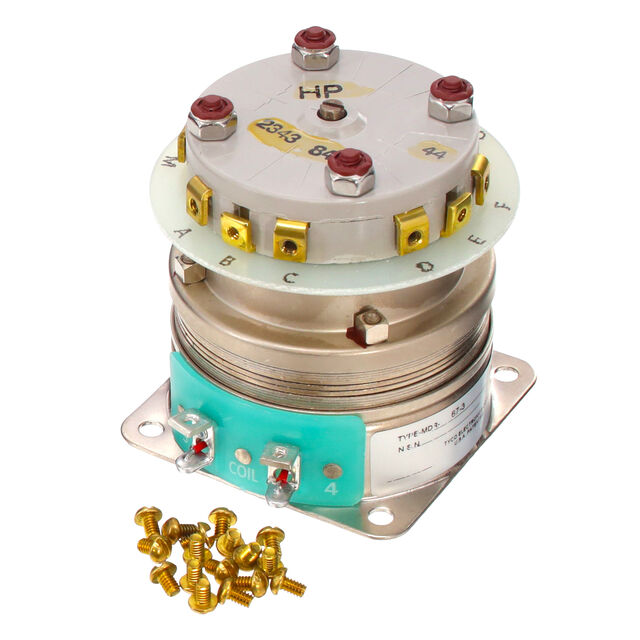

MDR-67-3

Active

TE Connectivity Potter & Brumfield Relays

RELAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MDR-67-3

Active

TE Connectivity Potter & Brumfield Relays

RELAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDR-67-3

Coil Type	Non Latching
Coil Voltage	28 VDC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Mounting Type	Chassis Mount
Operate Time	16 ms
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Relay Type	General Purpose
Termination Style	Screw Terminal

1393139 Series

Part	Contact Rating (Current)	Coil Type	Mounting Type	Relay Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Coil Voltage	Contact Material	Contact Form	Contact Form	Operate Time
TE Connectivity Potter & Brumfield Relays 9-1393139-5	10 A	Non Latching	Chassis Mount	General Purpose	65 °C	0 °C	Screw Terminal
TE Connectivity Potter & Brumfield Relays MDR-66-4	10 A	Non Latching	Chassis Mount	General Purpose	65 °C	0 °C	Screw Terminal	115 VAC	Silver Cadmium Oxide (AgCdO)	16PDT	16 Form C	50 ms
TE Connectivity Potter & Brumfield Relays 6-1393139-1	10 A	Non Latching	Chassis Mount	General Purpose	65 °C	0 °C	Screw Terminal
TE Connectivity Potter & Brumfield Relays 4-1393139-3		Non Latching		General Purpose
TE Connectivity Potter & Brumfield Relays 3-1393139-9	10 A	Non Latching	Chassis Mount	General Purpose	65 °C	0 °C	Screw Terminal
TE Connectivity Potter & Brumfield Relays 3-1393139-3	10 A	Non Latching	Chassis Mount		65 °C	0 °C	Screw Terminal
TE Connectivity Potter & Brumfield Relays 4-1393139-6	10 A	Non Latching	Chassis Mount	General Purpose	65 °C	0 °C	Screw Terminal
TE Connectivity Potter & Brumfield Relays MDR-4091	10 A	Non Latching	Chassis Mount	General Purpose	65 °C	0 °C	Screw Terminal	440 VAC	Silver Cadmium Oxide (AgCdO)	4PDT (4 Form C)		12 ms
TE Connectivity Potter & Brumfield Relays 8-1393139-2	10 A	Non Latching	Chassis Mount	General Purpose	65 °C	0 °C	Screw Terminal
TE Connectivity Potter & Brumfield Relays MDR-67-3	10 A	Non Latching	Chassis Mount	General Purpose	65 °C	0 °C	Screw Terminal	28 VDC	Silver Cadmium Oxide (AgCdO)	4PDT (4 Form C)		16 ms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4950.84

Description

General part information

1393139 Series

General Purpose Relay 4PDT (4 Form C) 28VDC Coil Chassis Mount

Documents

Technical documentation and resources
