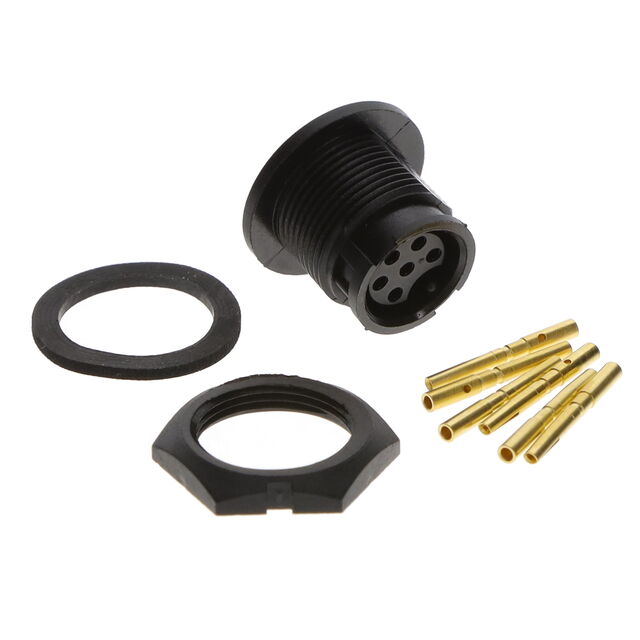

7280-6SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	7280-6SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

Part	Current Rating (Amps)	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Applications	Orientation	Contact Material	Color	Voltage Rating	Ingress Protection	Backshell Material, Plating	Termination	Mounting Feature	Number of Positions	Primary Material	Contact Finish - Mating	Fastening Type
Conxall/Switchcraft 7280-6SG-300	Varies by Wire Gauge	Unshielded	-40 °C	115 °C	Receptacle Female Sockets	Automotive Communication Systems Instrumentation	Keyed	Brass	Black	600 V	Weathertight	Nylon Polyamide (PA)	Crimp	Bulkhead - Front Side Nut	6	Plastic	Gold	Bayonet Lock
