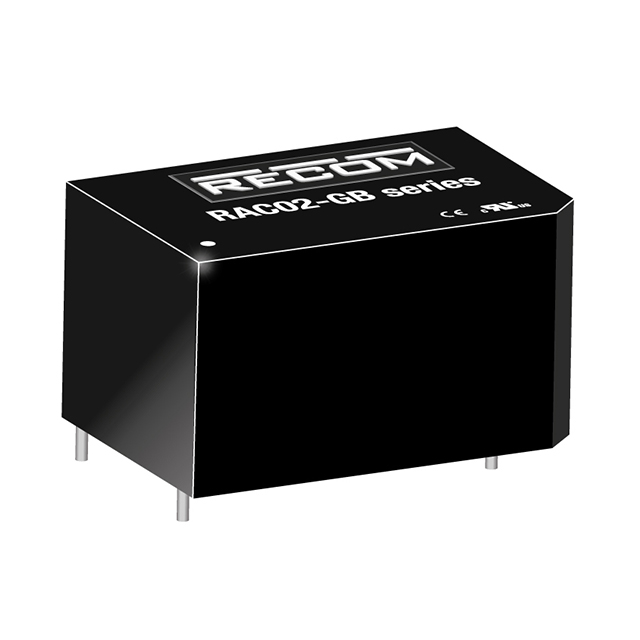

RAC02-05SGB

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 2 W, 5 V, 400 MA

Search across all available documentation for this part.

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 2 W, 5 V, 400 MA

Technical Specifications

Parameters and characteristics for this part

AC/DC Power Modules 2W 80-305Vin 24Vout 83mA

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Standard Number	Package / Case	Efficiency	Approval Agency	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Load Regulation	Number of Outputs	Weight	Weight	Voltage - Output 1	Power (Watts)	Type	Features	Voltage - Input [Min]	Voltage - Input [Max]	Line Regulation	Current - Output 1	Voltage - Isolation
RECOM Power RAC02-05SE/277	Through Hole	85 °C	-40 °C	Household Appliances ITE (Commercial)	60335-1 60950-1	4-DIP Module	70 %	CE cURus	400 mA	17.8 mm	0.7 "	0.96 in	33.7 mm	24.4 mm	1.33 "	6 %	1	0.054 lb	24.49 g	5 V	2 W	Enclosed	Universal Input	85 VAC	305 VAC	1.5 %
RECOM Power RAC02-05SE/277/W	Chassis Mount	85 °C	-40 °C	Household Appliances ITE (Commercial)			70 %	CE cURus		17.8 mm	0.7 "	0.96 in	33.7 mm	24.4 mm	1.33 "		1			5 V	2 W	Enclosed	DC Input Capable Universal Input	85 VAC	305 VAC		400 mA	3000 V
RECOM Power RAC02-24SE/277	Through Hole	85 °C	-40 °C	Household Appliances ITE (Commercial)	60335-1 60950-1	4-DIP Module	76 %	CE cURus	83 mA	17.8 mm	0.7 "	0.96 in	33.7 mm	24.4 mm	1.33 "	6 %	1	0.054 lb	24.49 g	24 V	2 W	Enclosed	Universal Input	85 VAC	305 VAC	1.5 %
RECOM Power RAC02-05SGB	Through Hole	70 °C	-25 °C	ITE (Commercial)		4-DIP Module	69 %	CE cURus FCC	400 mA	19 mm	0.75 in	0.87 in	33.7 mm	22.2 mm	1.33 "	6 %	1			5 V	2 W	Enclosed	Universal Input			2 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC Power Modules 2W 80-305Vin 24Vout 83mA

Technical documentation and resources
