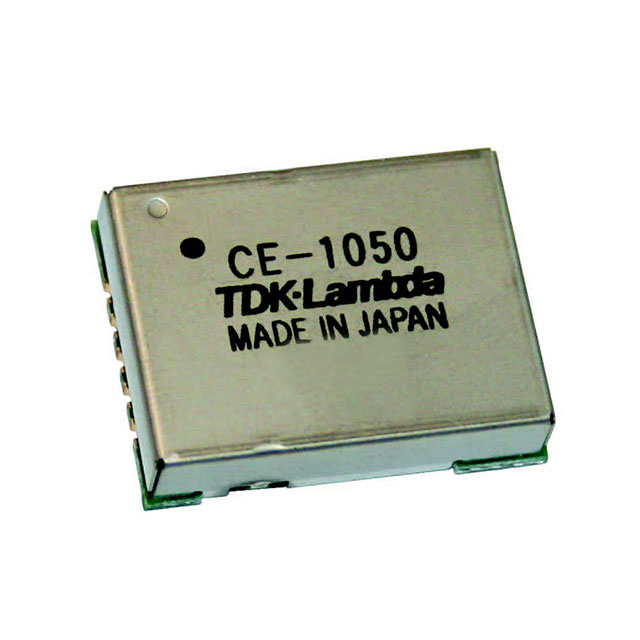

CE-1050-TP
TDK-LAMBDA
NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 31.5 W, 3.3 VDC, 12.6 VDC, 2.5 A
Deep-Dive with AI
Search across all available documentation for this part.
CE-1050-TP
TDK-LAMBDA
NON ISOLATED POL DC/DC CONVERTER, ITE, MODULE, 31.5 W, 3.3 VDC, 12.6 VDC, 2.5 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CE-1050-TP |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 2.5 A |
| Efficiency | 90 % |
| Features | OCP, Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Package / Case | 10-SMD Module |
| Size / Dimension [x] | 21.3 mm |
| Size / Dimension [x] | 0.84 in |
| Size / Dimension [y] | 16.4 mm |
| Size / Dimension [y] | 0.65 in |
| Size / Dimension [z] | 0.22 in |
| Size / Dimension [z] | 5.5 mm |
| Supplier Device Package | 10-SMD Module |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output 1 [Max] [custom] | 12.6 V |
| Voltage - Output 1 [Min] [custom] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CE-1050 Series
Non-Isolated PoL Module DC DC Converter 1 Output 3.3 ~ 12.6V 2.5A 9V - 26.4V Input
