Q-0L01S0008018i

Active

Amphenol Custom Cable

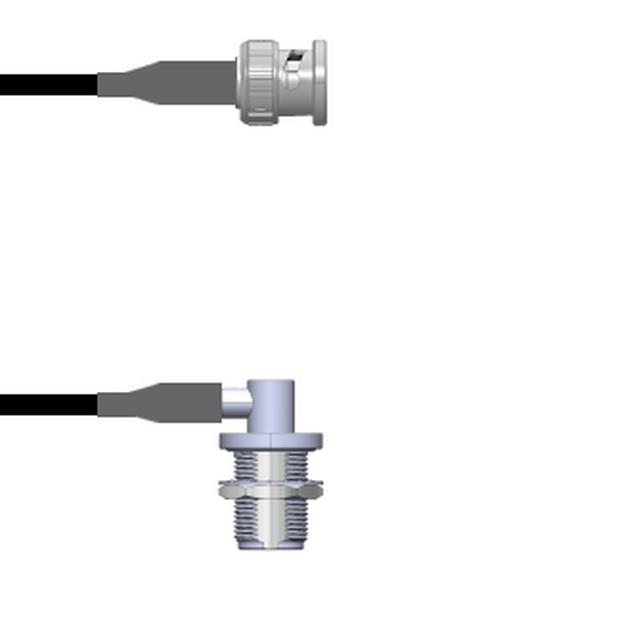

COAX CBL BNC TO N-TYPE 18"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0L01S0008018i

Active

Amphenol Custom Cable

COAX CBL BNC TO N-TYPE 18"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0L01S0008018i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	457.2 mm
Length [x]	457.2 mm
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0L01S0 Series

Part	Style	Color	2nd Connector	2nd Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	Length	Length	Length	Overall Impedance	2nd Connector Mounting Type	Cable Type	1st Contact Gender	Features	1st Connector	2nd Connector Mounting Feature	Length [x]	Length [x]
Amphenol Custom Cable Q-0L01S00081.5M	BNC to N-Type	Black	N-Type Jack Right Angle	Female	Free Hanging (In-Line)	4 GHz	59.1 in	4.9 ft	1.5 m	50 Ohms	Panel Mount	RG-58	Male	Shielded	BNC Plug	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0L01S00082.5M	BNC to N-Type	Black	N-Type Jack Right Angle	Female	Free Hanging (In-Line)	4 GHz	98.4 in	8.2 '	2.5 m	50 Ohms	Panel Mount	RG-58	Male	Shielded	BNC Plug	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0L01S0008018i	BNC to N-Type	Black	N-Type Jack Right Angle	Female	Free Hanging (In-Line)	4 GHz				50 Ohms	Panel Mount	RG-58	Male	Shielded	BNC Plug	Bulkhead - Front Side Nut	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0L01S0008003M	BNC to N-Type	Black	N-Type Jack Right Angle	Female	Free Hanging (In-Line)	4 GHz	118.1 in	9.8 '	3 m	50 Ohms	Panel Mount	RG-58	Male	Shielded	BNC Plug	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0L01S0008048i	BNC to N-Type	Black	N-Type Jack Right Angle	Female	Free Hanging (In-Line)	4 GHz	48 in	4 ft	1200 mm	50 Ohms	Panel Mount	RG-58	Male	Shielded	BNC Plug	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0L01S0008002M	BNC to N-Type	Black	N-Type Jack Right Angle	Female	Free Hanging (In-Line)	4 GHz	78.7 in	6.6 ft	2 m	50 Ohms	Panel Mount	RG-58	Male	Shielded	BNC Plug	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0L01S0008001M	BNC to N-Type	Black	N-Type Jack Right Angle	Female	Free Hanging (In-Line)	4 GHz	39.4 in	3.3 ft	1 m	50 Ohms	Panel Mount	RG-58	Male	Shielded	BNC Plug	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 111.00
		25	$ 108.88
		50	$ 106.77
		100	$ 104.66
		250	$ 102.55

Description

General part information

Q-0L01S0 Series

Cable Assembly Coaxial BNC to N-Type RG-58 18.00" (457.20mm)

Documents

Technical documentation and resources

No documents available
