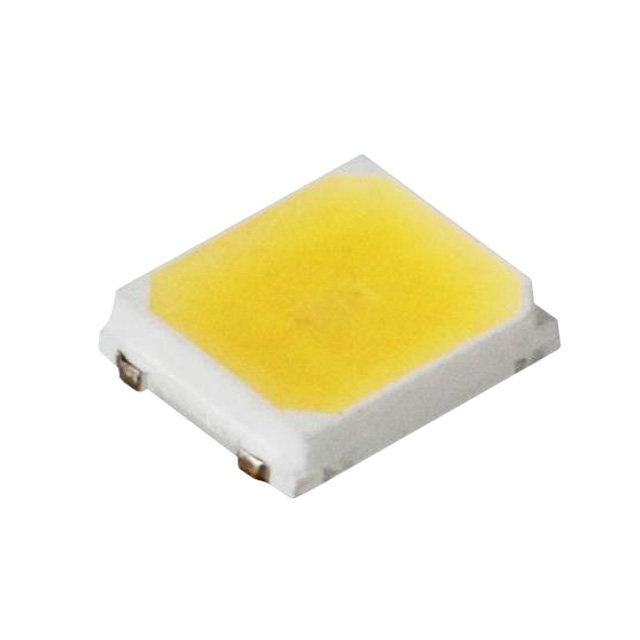

S1W0-2835358003-0000003S-0P002

Active

Seoul Semiconductor

LED CHIP WARM WHITE 3500K 200MA 2-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S1W0-2835358003-0000003S-0P002

Active

Seoul Semiconductor

LED CHIP WARM WHITE 3500K 200MA 2-PIN SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S1W0-2835358003-0000003S-0P002

CCT (K)	3500 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	180 mA
Current - Test	65 mA
Flux @ 25°C, Current - Test	30 lm
Height - Seated (Max) [Max] [z]	0.035 "
Height - Seated (Max) [Max] [z]	0.9 mm
Lumens/Watt @ Current - Test	159 lm/W
Mounting Type	Surface Mount
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.13 in, 3.3 mm
Size / Dimension [y]	0.11 in, 2.8 mm
Supplier Device Package	3528
Thermal Resistance of Package [custom]	30 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.95 V

S1W0 Series

Part	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Thermal Resistance of Package [custom]	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Lumens/Watt @ Current - Test	Flux @ 85°C, Current - Test	Current - Max [Max]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	Flux @ 25°C, Current - Test	Thermal Resistance of Package [diameter]	Current - Test	Package / Case	Supplier Device Package
Seoul Semiconductor S1W0-2222309003-00000000-P0001	2.78 V	90	4 °C/W	Warm White	0.087 "	0.087 "	2.21 mm	2.21 mm	140 °	107 lm/W	208 lm	2 A	2-SMD No Lead	0.54 mm	0.021 in	Surface Mount	SMD
Seoul Semiconductor S1W0-5630278003-0000003S-00004	2.78 V	80		Warm White	5.2 mm	3 mm			120 °	192 lm/W		200 mA	2211 (5630 Metric)	0.85 mm	0.033 "	Surface Mount		0.118 in	0.205 in	2700 K	35 lm	10 °C/W	65 mA
Seoul Semiconductor S1W0-2222278003-00000000-00001	2.78 V	80	4 °C/W	Warm White	0.087 "	0.087 "	2.21 mm	2.21 mm	140 °	131 lm/W	261 lm	2 A	2-SMD No Lead	0.54 mm	0.021 in	Surface Mount	SMD			2700 K
Seoul Semiconductor S1W0-2222359003-00000000-P0001	2.78 V	90	4 °C/W	Warm White	0.087 "	0.087 "	2.21 mm	2.21 mm	140 °	115 lm/W	223 lm	2 A	2-SMD No Lead	0.54 mm	0.021 in	Surface Mount	SMD			3500 K
Seoul Semiconductor S1W0-2835509003-0000003S-0P006	2.72 V	90		Cool White					120 °	174 lm/W		300 mA	1411	0.9 mm	0.035 "	Surface Mount		0.11 in 2.8 mm	0.13 in 3.3 mm		31 lm	13 °C/W	65 mA	3528 Metric	3528
Seoul Semiconductor S1W0-2222277003-00000000-P0001	2.78 V	70	4 °C/W	Warm White	0.087 "	0.087 "	2.21 mm	2.21 mm	140 °	151 lm/W		2 A	2-SMD No Lead	0.54 mm	0.021 in	Surface Mount	SMD			2700 K
Seoul Semiconductor S1W0-5630308003-0000003S-00004	2.78 V	80		Warm White	5.2 mm	3 mm			120 °	194 lm/W		200 mA	2211 (5630 Metric)	0.85 mm	0.033 "	Surface Mount		0.118 in	0.205 in	3000 K	35 lm	10 °C/W	65 mA
Seoul Semiconductor S1W0-2222658003-00000000-00001	2.78 V	80	4 °C/W	Cool White	0.087 "	0.087 "	2.21 mm	2.21 mm	140 °	146 lm/W		2 A	2-SMD No Lead	0.54 mm	0.021 in	Surface Mount	SMD			6500 K
Seoul Semiconductor S1W0-2835358003-0000003S-0P002	2.95 V	80	30 °C/W	Warm White					120 °	159 lm/W		180 mA	1411	0.9 mm	0.035 "	Surface Mount		0.11 in 2.8 mm	0.13 in 3.3 mm	3500 K	30 lm		65 mA	3528 Metric	3528
Seoul Semiconductor S1W0-2222277003-00000000-00001	2.78 V	70	4 °C/W	Warm White	0.087 "	0.087 "	2.21 mm	2.21 mm	140 °	151 lm/W		2 A	2-SMD No Lead	0.54 mm	0.021 in	Surface Mount	SMD			2700 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.17
		10	$ 0.09
		100	$ 0.04
		500	$ 0.04
		1000	$ 0.03
		2000	$ 0.03
		5000	$ 0.03
	Digi-Reel®	1	$ 0.17
		10	$ 0.09
		100	$ 0.04
		500	$ 0.04
		1000	$ 0.03
		2000	$ 0.03
		5000	$ 0.03
	Tape & Reel (TR)	16000	$ 0.02
		32000	$ 0.02
		48000	$ 0.02
		112000	$ 0.02

Description

General part information

S1W0 Series

LED Lighting 3528 White, Warm 3500K 3-Step MacAdam Ellipse 2.95V 65mA 120° 1411 (3528 Metric)
