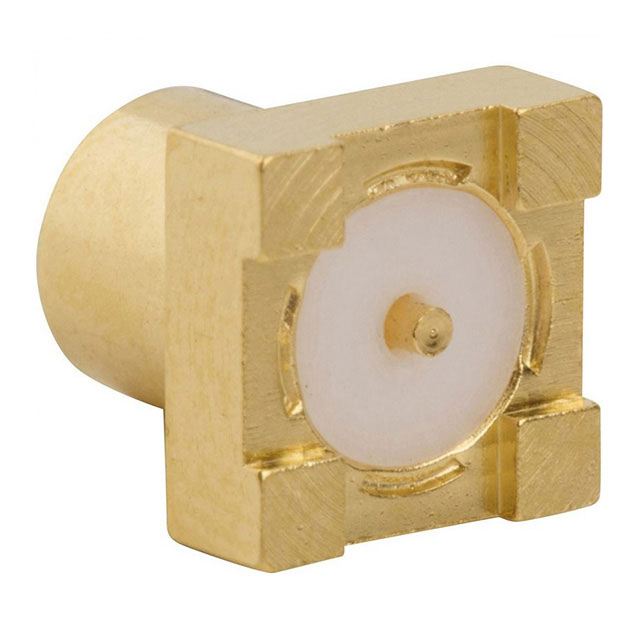

919-132J-71P

Active

Amphenol RF

CONN MCX JACK STR 75 OHM SMD

Search across all available documentation for this part.

Active

Amphenol RF

CONN MCX JACK STR 75 OHM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	919-132J-71P

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	75 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Connector Style	Housing Color	Body Material	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Center Contact Material	Body Finish	Fastening Type	Center Contact Plating	Shield Termination	Insertion Loss	Number of Ports	Connector Type	Dielectric Material	Mating Cycles	Mounting Type	Frequency - Max [Max]	Cable Group	Includes
Amphenol RF 919-132J-71P	MCX	Gold	Brass	75 Ohms	-65 ░C	165 °C	Solder	Beryllium Copper	Gold	Snap-On	Gold	Solder	0.1 dB	1	Female Socket Jack	Polytetrafluoroethylene (PTFE)	500	Surface Mount	6000 MHz
Amphenol RF 919-137P-71SX	MCX	Gold	Beryllium Copper	75 Ohms	-65 ░C	165 °C	Solder	Brass	Gold	Snap-On	Gold	Crimp	0.15 dB	1	Male Pin Plug	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line)	6000 MHz	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	1 Connector 1 Contact 1 Ferrule
Amphenol RF 919-131J-51SX	MCX	Gold	Brass	50 Ohms	-65 ░C	165 °C	Solder	Beryllium Copper	Gold	Snap-On	Gold	Crimp	0.1 dB	1	Female Socket Jack	Polytetrafluoroethylene (PTFE)	500	Free Hanging (In-Line)	6000 MHz	178A 178B 196 196A M17/93-RG178 RG-178

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Jack, Female Socket 75 Ohms Surface Mount Solder
