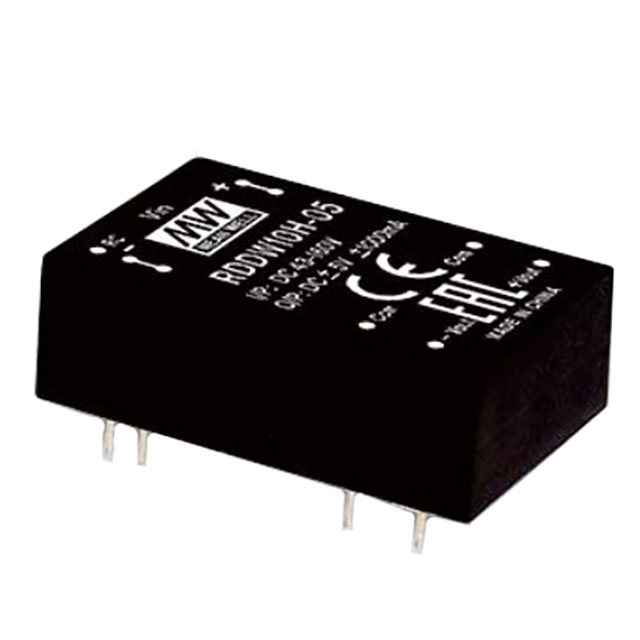

RDDW10H-12
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDDW10H-12
ActiveMEAN WELL USA Inc.
DC/DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDDW10H-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UKCA, CE, EAC |
| Current - Output (Max) [Max] | 416 mA |
| Efficiency | 87 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9 PC Pad |
| Package / Case | 24-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 160 V |
| Voltage - Input (Min) [Min] | 43 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 27.40 | |
| 5 | $ 25.83 | |||
| 10 | $ 25.18 | |||
Description
General part information
RDDW10H Series
Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 43V - 160V Input
