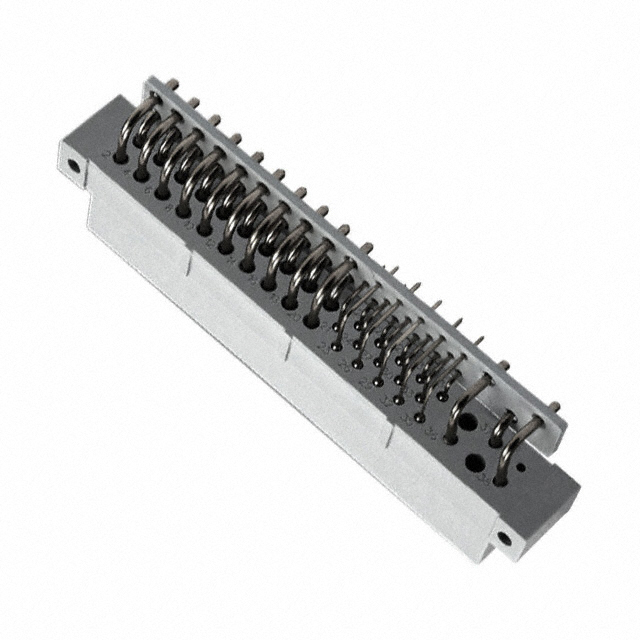

CPH38W23MARARK9X

Active

Amphenol CONEC

CONN PLUG COMPACT PCI 38POS PCB

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN PLUG COMPACT PCI 38POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CPH38W23MARARK9X

Color	Gray
Connector Style	CompactPCI®
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Layout, Typical [custom]	15
Contact Layout, Typical [custom]	23
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	38
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Solder

Part	Contact Finish	Material Flammability Rating	Number of Positions	Connector Style	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Color	Number of Positions Loaded	Contact Finish Thickness	Mounting Type	Termination
Amphenol CONEC CPH38W23MARARK9X	Gold	UL94 V-0	38	CompactPCI®	Male Pins Plug	-55 °C	125 °C	15	23	Gray	All	Flash	Through Hole Right Angle	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

38 Connector Plug, Male Pins Through Hole, Right Angle Gray CompactPCI®
