6380-5SG-321

Active

Conxall/Switchcraft

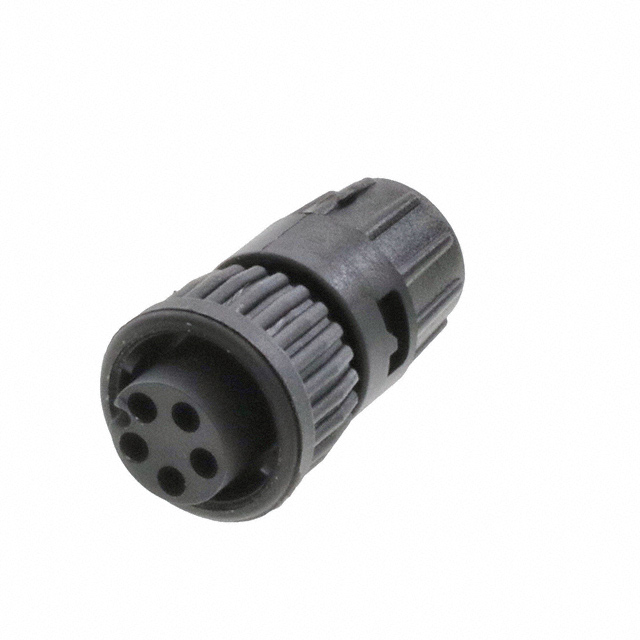

CONN PLUG FMALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-5SG-321

Active

Conxall/Switchcraft

CONN PLUG FMALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6380-5SG-321

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.21 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

6380-5SG Series

Part	Termination	Fastening Type	Connector Type	Contact Material	Orientation	Backshell Material, Plating	Features	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Ingress Protection	Primary Material	Mounting Type	Voltage Rating	Contact Finish - Mating	Color	Current Rating (Amps)	Applications	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6380-5SG-522	Crimp	Bayonet Lock	Female Sockets Plug	Brass	Keyed	Nylon Polyamide (PA)	Backshell	6.35 mm	0.25 in	0.22 in	5.59 mm	Weathertight	Plastic	Free Hanging (In-Line)	600 V	Gold	Black	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	-40 °C	115 °C
Conxall/Switchcraft 6380-5SG-3DC	Crimp	Bayonet Lock	Female Sockets Plug	Brass	Keyed	Nylon Polyamide (PA)	Backshell					Weathertight	Plastic	Free Hanging (In-Line)	600 V	Gold	Black	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	-40 °C	115 °C
Conxall/Switchcraft 6380-5SG-516	Crimp	Bayonet Lock	Female Sockets Plug	Brass	Keyed	Nylon Polyamide (PA)	Backshell					Weathertight	Plastic	Free Hanging (In-Line)	600 V	Gold	Black	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	-40 °C	115 °C	0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 6380-5SG-321	Crimp	Bayonet Lock	Female Sockets Plug	Brass	Keyed	Nylon Polyamide (PA)	Backshell		0.23 in	0.21 in	5.33 mm	Weathertight	Plastic	Free Hanging (In-Line)	600 V	Gold	Black	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	-40 °C	115 °C					5.84 mm
Conxall/Switchcraft 6380-5SG-315	Crimp	Bayonet Lock	Female Sockets Plug	Brass	Keyed	Nylon Polyamide (PA)	Backshell					Weathertight	Plastic	Free Hanging (In-Line)	600 V	Gold	Black	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	-40 °C	115 °C						0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 6380-5SG-311	Crimp	Bayonet Lock	Female Sockets Plug	Brass	Keyed	Nylon Polyamide (PA)	Backshell					Weathertight	Plastic	Free Hanging (In-Line)	600 V	Gold	Black	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	-40 °C	115 °C								2.29 mm	0.09 in 0.14 in	3.56 mm
Conxall/Switchcraft 6380-5SG-318	Crimp	Bayonet Lock	Female Sockets Plug	Brass	Keyed	Nylon Polyamide (PA)	Backshell					Weathertight	Plastic	Free Hanging (In-Line)	600 V	Gold	Black	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	-40 °C	115 °C	0.18 in	0.2 in	4.57 mm	5.08 mm
Conxall/Switchcraft 6380-5SG-519	Crimp	Bayonet Lock	Female Sockets Plug	Brass	Keyed	Nylon Polyamide (PA)	Backshell	5.33 mm	0.21 in	0.19 in	4.83 mm	Weathertight	Plastic	Free Hanging (In-Line)	600 V	Gold	Black	Varies by Wire Gauge	Automotive Communication Systems Instrumentation	Unshielded	-40 °C	115 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.70
		10	$ 7.71
		25	$ 7.42
		50	$ 7.12
		100	$ 6.96

Description

General part information

6380-5SG Series

5 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources
