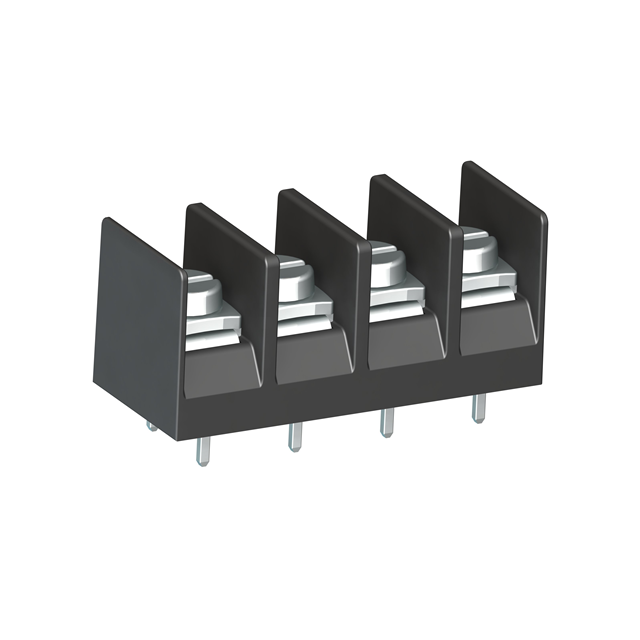

982-D/04
ActiveWECO Electrical Connectors Inc.
TERM STRIP BARRIER 4 POLE 9.52 M
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
982-D/04
ActiveWECO Electrical Connectors Inc.
TERM STRIP BARRIER 4 POLE 9.52 M
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 982-D/04 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Color | Gray |
| Current Rating (Amps) | 20 A |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits | 4 |
| Number of Rows | 1 |
| Number of Wire Entries | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 9.53 mm |
| Pitch [x] | 0.375 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.67 | |
| 10 | $ 2.43 | |||
| 25 | $ 2.19 | |||
| 50 | $ 2.06 | |||
| 100 | $ 1.96 | |||
| 250 | $ 1.86 | |||
| 500 | $ 1.81 | |||
| 1000 | $ 1.77 | |||
| 5000 | $ 1.72 | |||
Description
General part information
982 Series
4 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
